Description

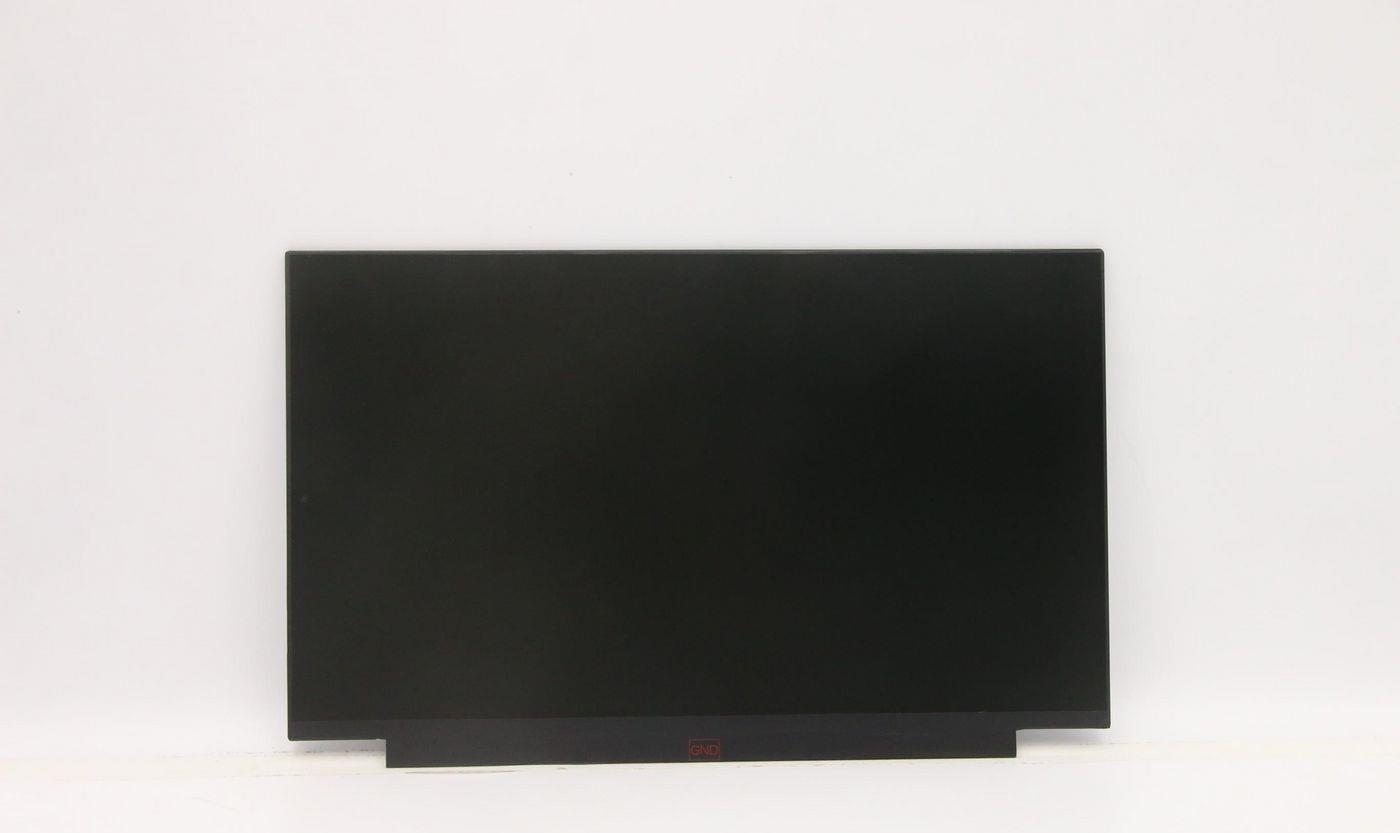

The Lenovo 13.3-inch HD TN Anti-Glare LCD Panel (FRU02HL701) by AU Optronics model B133XTN03.3 is a genuine internal replacement display for select 13.3-inch ThinkPad laptops. It features TN panel technology with a matte anti-glare surface and LED backlighting to deliver 1366×768 resolution at 250 cd/m² brightness. The non-touch panel connects via a 30-pin eDP interface at the bottom right and fits into the laptop’s internal replacement slot. Measuring roughly 300.26 × 187.27 × 3 mm in black finish, it is supplied without mounting brackets.
Key Features
- 13.3-inch HD TN panel
- 1366×768 resolution
- 250 cd/m² LED backlight brightness
- Anti-glare matte surface
- 30-pin eDP connector at bottom right
Specifications
Brand: Lenovo
Model Number: 02HL701
Product Type: Internal laptop LCD replacement panel
Panel Model: AU Optronics B133XTN03.3
Screen Size Inches: 13.3
Resolution: 1366×768
Resolution Class: HD
Panel Technology: TN
Surface Finish: Anti-glare
Brightness Cd Per M2: 250
Backlight Technology: LED
Touchscreen: false
Connector: 30-pin eDP
Connector Position: Bottom right
Width (mm): 300.26
Height (mm): 187.27
Depth (mm): 3
Color: Black
Installation Type: Internal laptop replacement component
Package Quantity: 1
Alternative Reference: SD10S72068
€158,20
