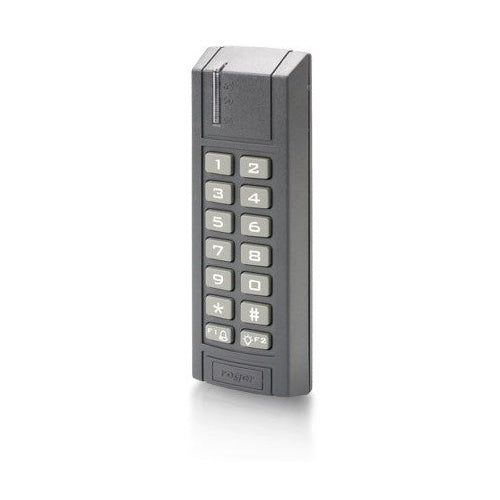

Roger MCT12E Proximity Reader Product code: MCT12E. . The MCT12E is a proximity reader with a keypad dedicated to work in the RACS 5 access control system. Selected features: . Access terminal for the RACS 5 system; EM125kHz (UNIQUE) card reader; 12-button numeric keypad and two function buttons; 3 signal indicators (LEDs); Tamper sensor; RS-485 interface; Technical data: . Supply voltage Nominal 12VDC, permissible 10-15VDC; Current consumption (average) 50mA; Tamper protection (Tamper) Isolated contacts 50mA/24V, closed when the housing is closed; EM 125kHz Unique proximity reader, EM4100/4102 compliant, reading range up to 7cm; Distances Up to 1200m for RS485 between the controller and the expander; Selected features ; 12-button numeric keypad and two function buttons; The reader can work outdoors without the need for additional security measures (after securing the cable connections), covers are also available as an option; Possibility to connect an additional PRT series reader; Protection class IP65; Environmental class (according to EN 50133-1) Class IV; Operating temperature -25°C - +60°C; Humidity 10..95% (no condensation); Dimensions H x W x D 152.5 x 46 x 23(35)mm; Weight 150g; Note: the reader does not operate autonomously.
€546,95
