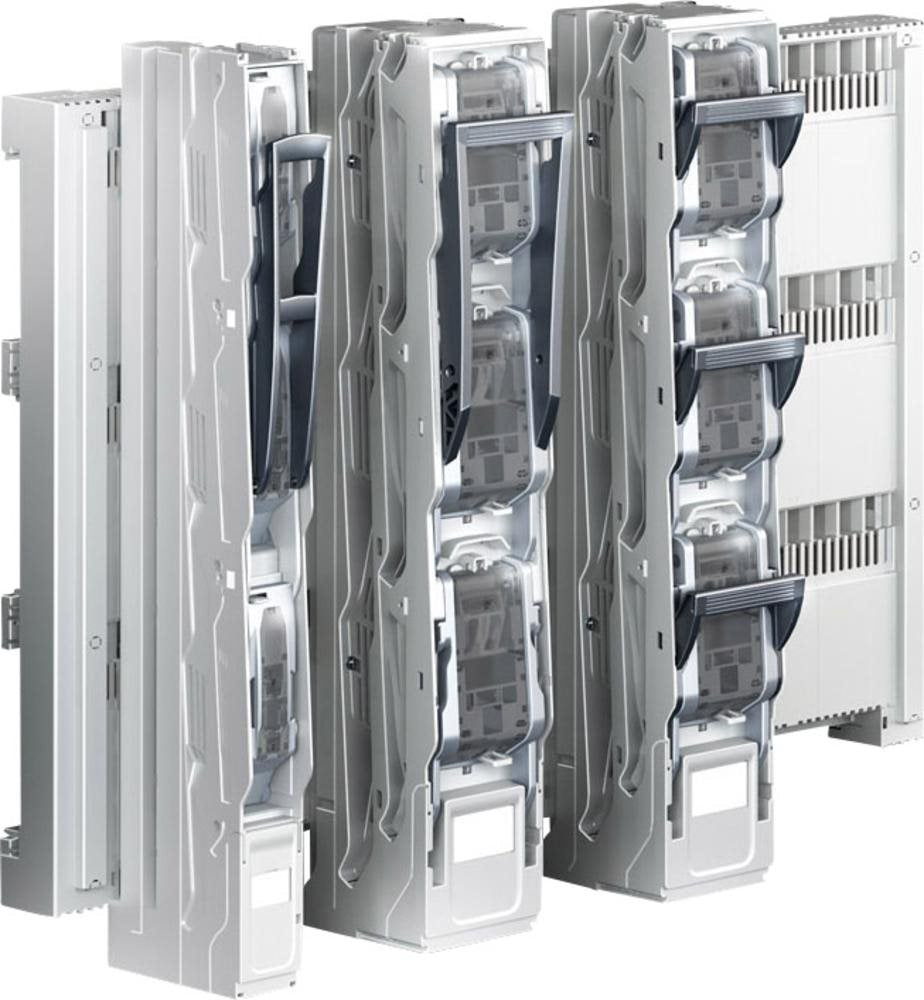

Description NH fuse switch disconnector Size: 00 - SV Test basis: IEC/DIN EN 60 947-3 DIN EN 60 269-2 (fuse links) Features: Material: Polyamide (PA 6.6), fire behavior according to UL 94-V0 Contact tracks: partially silver-plated hard copper Technical data: Design: 3-pole switchable, Size: 00 Color: Light gray (RAL 7035) Housing accessory type (categorization): Switch disconnector module Weight: 2.66 kg Contents: 1 pc. Material (LOV): Polyamide Suitable for: Busbars: with cross-sectional height: 10 mm, busbar systems with center distance: 185 mm Type (manufacturer type): SV 9677.025 Further technical data: Connection type (electrical): Frame terminal Rated operating voltage: 690 kV, 3 Rated operational current max.: 160 A Terminal space for round conductor cross-sections: 1.5 mm² - 95 mm² Cable exit: top/bottom Suitable for transformer mounting: yes Note: When using NH fuse switch disconnectors on busbars with touch protection covers, the use of the contact terminal is required.
€173,31
