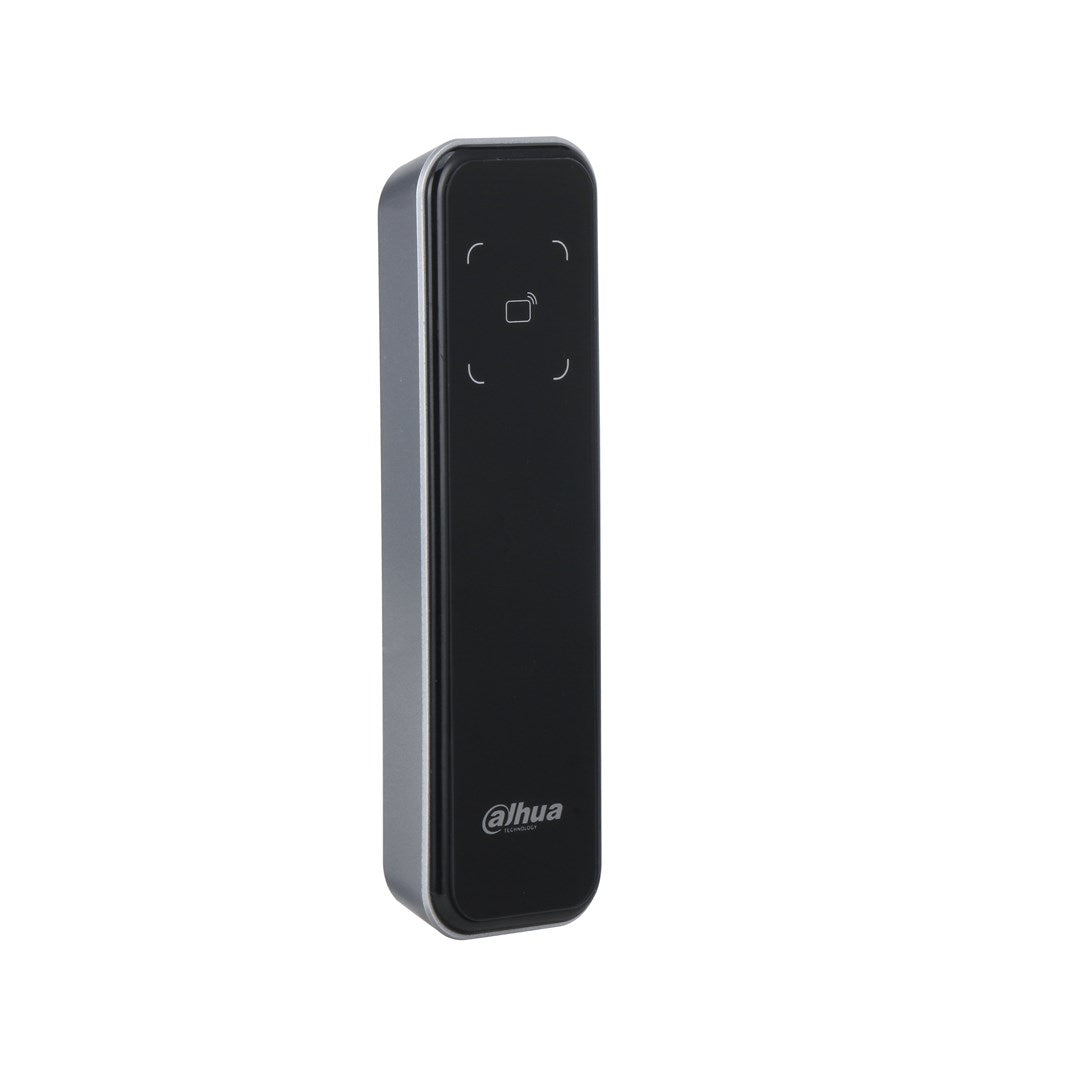

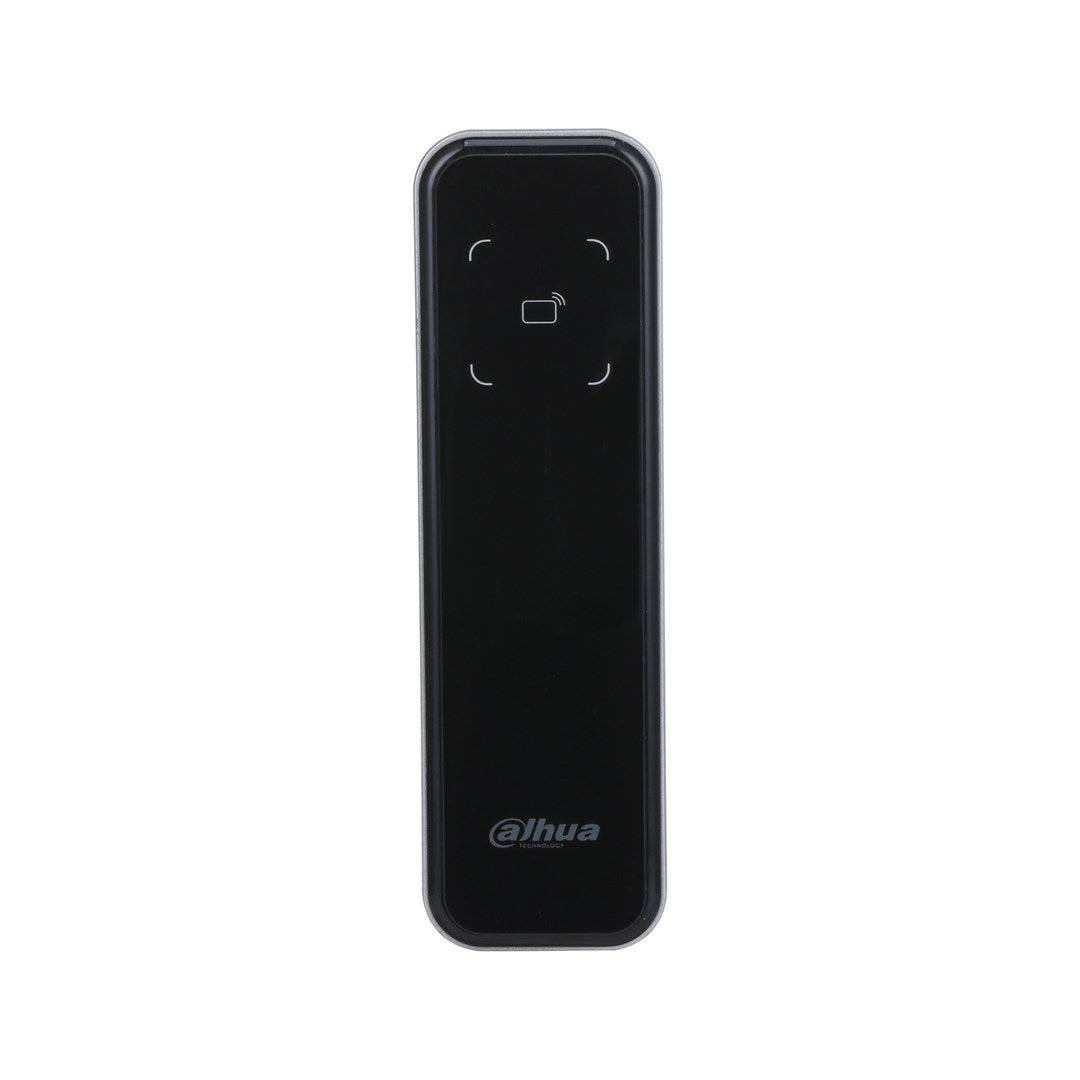

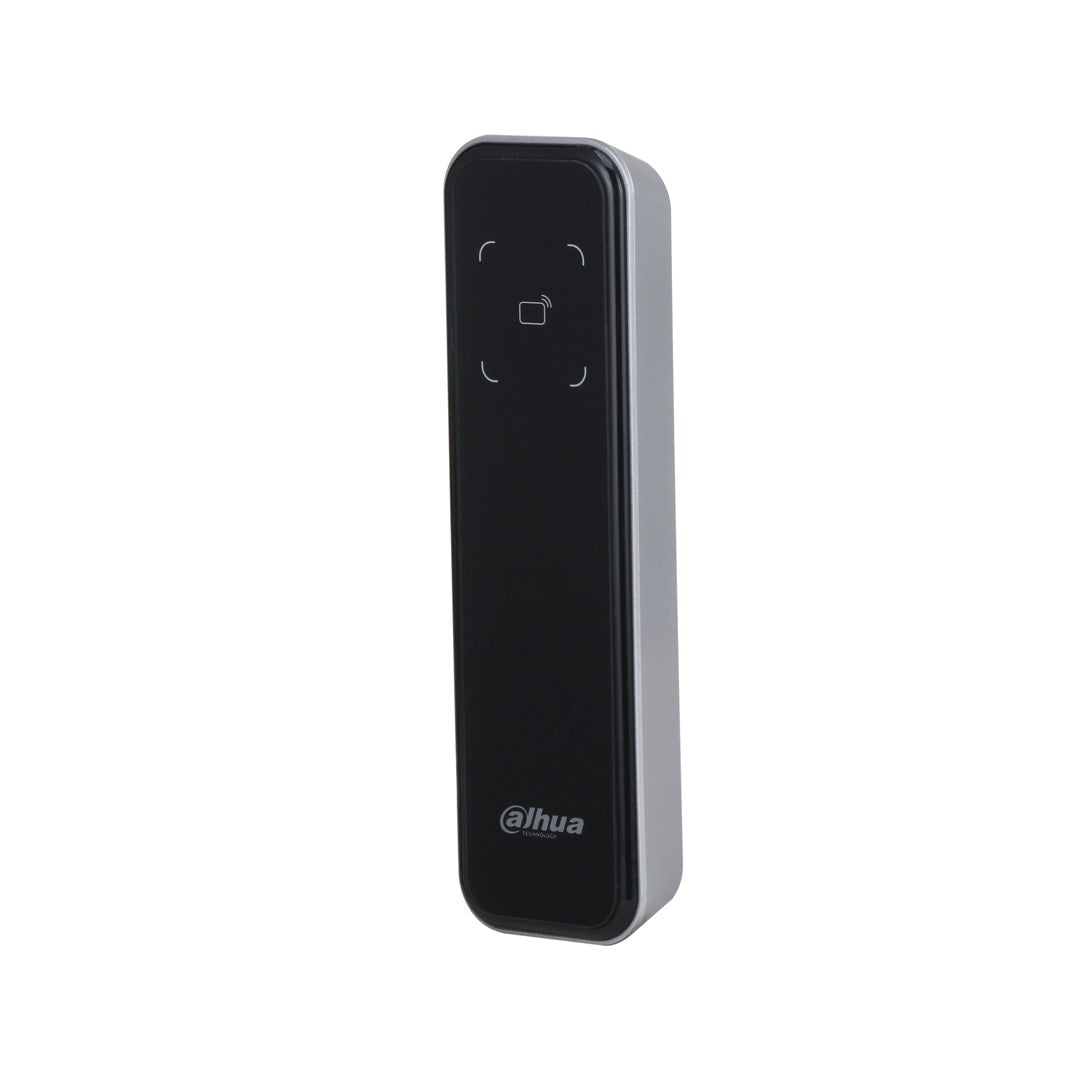

Dahua ASR2200A Outdoor Proximity Reader Product code: ASR2200A. . External card and key fob reader. Technical data. Card support: 13.56 MHz S50; Card reading range: 0.. 5 cm; Autonomous operation: no; Built-in keypad: no; Bell button: no; Communication: RS-485, Wiegand; Tamper output: yes; Power supply: 12 V DC; Maximum current consumption: 500 mA; Selected features: ; Built-in watchdog; LED indicators displaying the device's operating status; Buzzer; Ingress protection: IP66 - after additional sealing of the connection between the housing and the mounting surface, e.g. with silicone; Housing: Plastic + Tempered glass, Waterproof; Color: Black + Silver; Operating temperature: -30 °C.. 70 °C; Permissible relative ambient humidity: 5.. 95 % (non-condensing); Weight: 0.11 kg; Dimensions: 135 x 40 x 15 mm; Manufacturer / Brand: DAHUA; .
€80,77
