Description

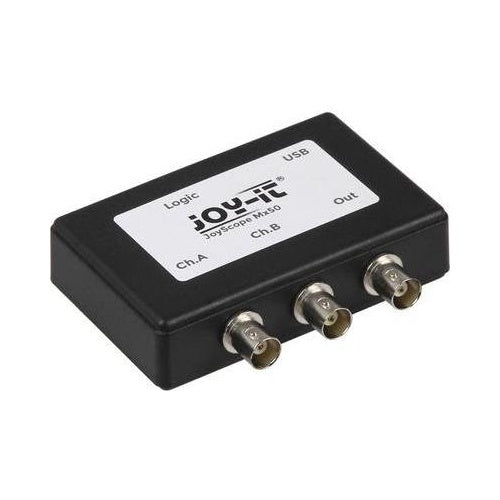

The JOY-IT JT-ScopeMega50 is a USB-powered mixed-signal oscilloscope offering 15 MHz analog bandwidth across two BNC analog inputs and a 16-channel digital logic analyzer with UART, I2C and SPI decoding. It delivers 8-bit resolution and draws just 150 mA from a USB 2.0 port for portable PC-based measurements, with an input voltage range of ±30 V. An integrated function generator produces up to 12.5 kHz sine, square, triangle and sawtooth waveforms at 1.8 Vpp. The compact 90×20×5 mm housing weighs 100 g, and included accessories comprise two 60 MHz probes, a 16-channel logic clip and USB cable.
Key Features
- 15 MHz analog bandwidth
- 2 analog channels
- 16 digital logic channels
- 8-bit resolution
- Integrated 12.5 kHz function generator (1.8 Vpp)
- USB-powered (150 mA draw)
Specifications
Brand: JOY-IT
Model Number: JT-ScopeMega50
Product Type: mixed signal oscilloscope
Power Source: USB
Weight (g): 100
Width (mm): 90
Height (mm): 20
Length (mm): 5
Number Of Analog Channels: 2
Number Of Digital Channels: 16
Resolution Bits: 8
Bandwidth Mhz: 15
Max Input Voltage V: 30
Min Input Voltage V: -30
Interfaces: BNC male, SUB-D 25-pin female, USB B 2.0
Function Generator Spec: 12.5 kHz, max 1.8 Vpp (sine, square, triangle, sawtooth)
Logic Decoding Protocols: UART, I2C, SPI
Included Probes: 2 × 60 MHz (10:1, 1:1)
Included Logic Clip: 16-channel logic analyzer clip
Included Cable: USB cable
Calibration: factory calibration (no certificate)
System Requirements: Windows XP SP3 to Windows 10 (32/64 bit), 1024×768@24 bit, Dual Core 2 GHz, USB 2.0
€214,50
