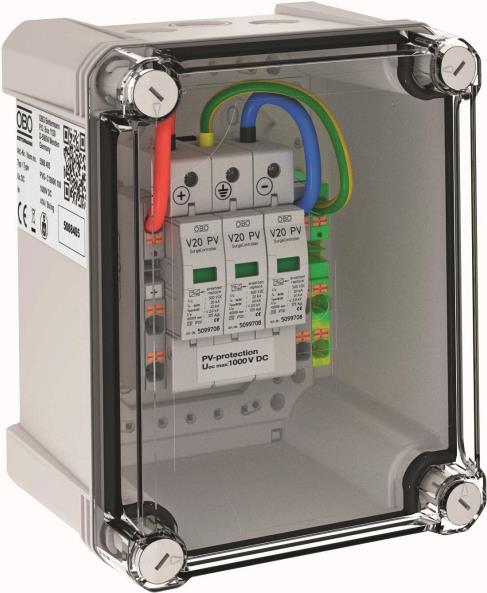

Generator connection box type 2 for photovoltaic systems for connecting 1 string. For DC protection of the inverter. Plug-in varistor surge arrester with disconnect device in a fault-resistant Y-circuit according to VDE 0100-712 (50539-12). Low DC protection level: 4.0 kV (Uoc max 1000 V DC). 1 protective device with 2 push-in terminals up to 6 mm pre-installed in the housing, up to 41 A DC per terminal. Polycarbonate housing (IP67), UV-resistant for outdoor use, including cable gland set and pressure equalization element. Additional measures may be required in case of risk of condensation due to wind, ice, temperature, or sun! Number of inputs: 1; Max. input voltage: DC 1000 V; Width: 150 mm; Height: 190 mm; Depth: 125 mm; String protection: none; Material: plastic; Protection class (IP): IP67; Impact resistance: IK08; Test class Type 1: no; Test class Type 2: yes; Test class Type 3: no; Monitoring function: no; Operating temperature: -25 - 65 °C; Max. installation material: meter cabinet/distribution board; Surge protection: -; OBO PVG-C1000K 100 generator connection box 1 5088405.
€181,95
