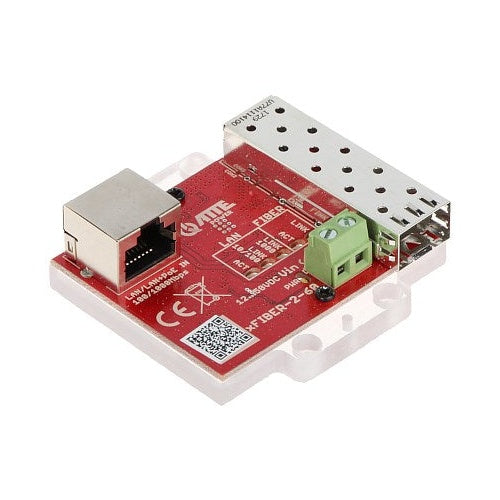

MEDIA CONVERTER XFIBER-2-60 SFP ATTE Manufacturer: ATTE . . XFIBER-2-60 is a Gigabit Ethernet SFP converter designed for IP CCTV systems. When using any SFP module compatible with the IEEE 802.3z standard, we have the opportunity to adapt the optical path parameters to the installation requirements (e.g. cooperation with single-mode or multimode optical fibers). The converter can be powered using a screw connector or directly from a PoE switch operating in the 802.3af or Passive PoE standard. The small dimensions of the device allow convenient installation in any housing (or in dedicated ABOX housings) or on a mounting plate (10.8 mm pitch). Attention! The SFP port requires the purchase of an SFP module, which is available in our offer. The converter does not cooperate with SFP modules in the IEEE 802.3u 100Base-FX standard. Connector type. SFP port,; LAN & PoE port - RJ45; Supported standards: IEEE 802.3z, IEEE 802.3af LAN port: 1 pc (RJ-45. UTP/STP) LAN & PoE Transmission speed. SFP: 1000 Mb/s,; LAN: 10/100/1000 Mbps; Selected features. (RJ45) 10/100/1000 Mb auto-negotiation, auto MDI/MDIX; LEDs indicating correct operation of the device; Surge protection; Mounting in vertical or horizontal position; Power supply. 35.. 56 V DC - Passive PoE (LAN port); 12.. 58 V DC (screw terminals); Operating temperature: -25 °C.. 65 °C Weight: 0.04 kg Dimensions: 61 x 61 x 21 mm Manufacturer / brand: ATTE Warranty: 3 years. Declaration of conformity CE PL. Manufacturer's catalog card PL. Instructions PL. .
€524,39
