Description

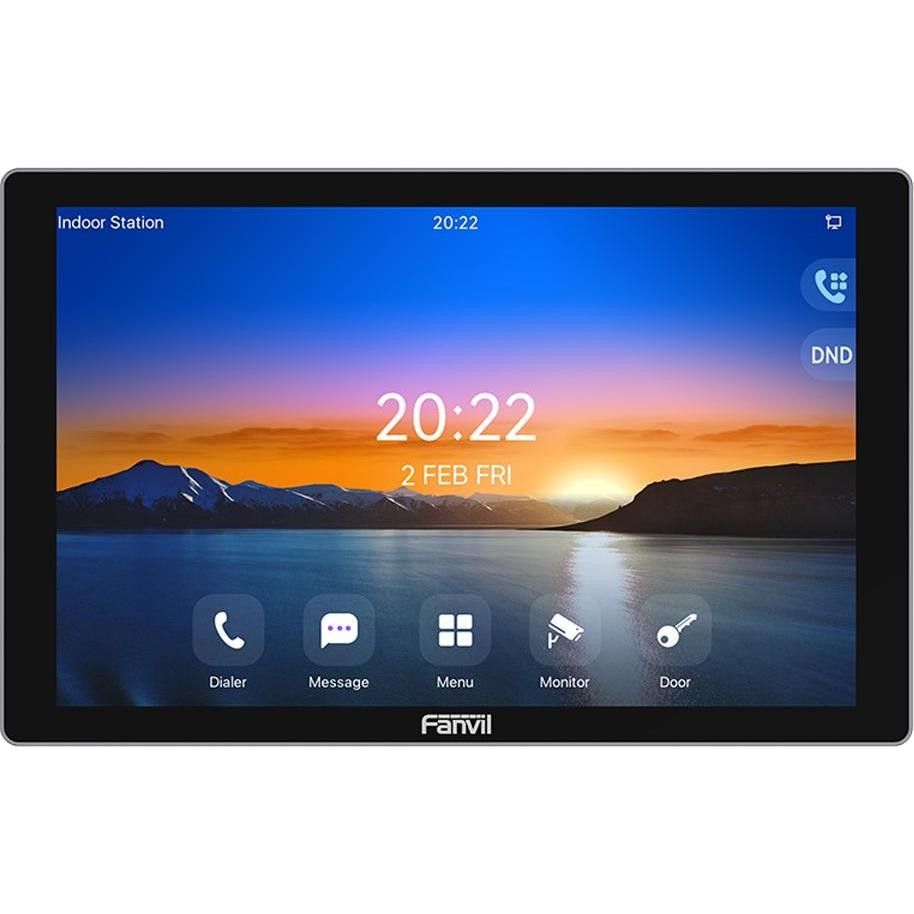

The Fanvil I506W SIP Indoor Station is a wall-mounted video intercom designed for residential, hotel and office environments. It features a 10.1-inch IPS capacitive touchscreen with 1280 × 800 resolution and supports live video monitoring up to 1920 × 1080 with H.264 decoding and optional H.265. Dual-band Wi-Fi and a 10/100 Mbps Ethernet port enable network connectivity, while PoE or a 12 V DC adapter provides flexible power options. The unit offers two-way hands-free audio, echo cancellation, six SIP lines, multiple alarm inputs, an integrated relay and secure media support via SRTP.
Key Features
- 10.1-inch IPS capacitive touchscreen
- Dual-band Wi-Fi and 10/100 Mbps Ethernet
- Supports H.264 video and optional H.265
- PoE (IEEE 802.3af) and 12 V DC power
- Six SIP lines support
- Eight alarm inputs and integrated relay
Specifications
Brand: Fanvil
Model Number: i506W
Product Type: Indoor video intercom station
Color: Black
Power Source: Power over Ethernet or external power adapter
Display Size: 10.1 inches
Display Type: IPS colour display
Touchscreen Type: Capacitive touchscreen
Display Resolution: 1280 × 800 pixels
Maximum Supported Video Call Resolution: 1920 × 1080 pixels
Video Decoding: H.264
Optional Video Decoding: H.265
Live Ip Camera Viewing: true
Door Phone Video Monitoring: true
Two Way Intercom: true
Full Duplex Audio: true
Acoustic Echo Cancellation: true
Narrowband Audio Codecs: G.711A, G.711U, G.723.1, G.726, G.729AB, iLBC
Wideband Audio Codecs: G.722, Opus
Dtmf Support: In-band, RFC2833, SIP INFO
Network Connection: Ethernet and Wi-Fi
Ethernet Interface: 10/100 Mbps adaptive
Ethernet Connector: RJ45
Wifi: true
Wifi Frequency Bands: 2.4 GHz, 5 GHz
Ipv4 Support: true
Ipv6 Support: true
Sip Protocol: SIP 2.0
Sip Transport Protocols: UDP, TCP, TLS
Secure Media Support: SRTP
Vlan Support: true
Vpn Support: L2TP, OpenVPN
Quality Of Service Support: true
Alarm Inputs: 8
Short Circuit Output: 1
Doorbell Input: 1
Rs485 Interface: 1
Integrated Relay: true
Maximum Relay Load: 30 V DC at 2 A or 125 V AC at 0.5 A
Poe Standard: IEEE 802.3af
External Power Input: 12 V DC, 1 A
Poe Power Consumption W: 2.6–6.6
Adapter Power Consumption W: 1.98–5.5
Mounting Method: Wall-mounted
Desktop Installation Optional: true
Compatible Desktop Stand: Fanvil DS105
Operating Temperature C: -10 to 50
Storage Temperature C: -40 to 80
Width (mm): 247.96
Height (mm): 156.96
Depth (mm): 25.6
Wall Mounting Bracket Included: true
Screw Kit Included: true
€181,16
