Description

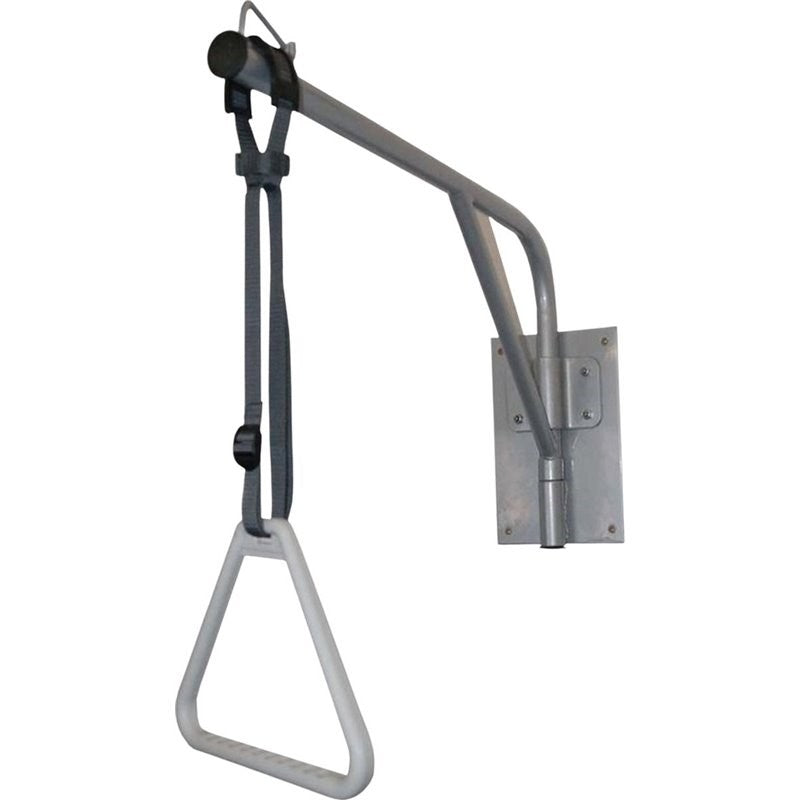

The SUNDO 46010 wall-mounted bed trapeze is a patient-lifting aid featuring a steel support arm, height-adjustable textile strap and triangular plastic hand grip. The 73 cm arm swivels in a semicircular range and the grip adjusts between 34 cm and 50 cm above the user for repositioning, sitting up or lifting hips for bedpan use. It mounts to the wall with a painted-steel plate (approx. 20 × 30 cm) using six fixings (not included) and supports up to 100 kg. The unit weighs 11.5 kg, operates from 10 °C to 60 °C, has an expected 10-year service life and carries German medical-aid number 19.40.02.2023.
Key Features
- Wall-mounted steel support arm
- 73 cm swivel range
- Height-adjustable strap (34–50 cm)
- Triangular plastic hand grip
- 100 kg maximum load
- Six mounting holes
- 11.5 kg weight
- Painted-steel mounting plate
- Suitable for bedpan transfer
Specifications
Brand: SUNDO
Model Number: 46010
Product Type: Bed trapeze and patient lifting aid
Mounting Type: Wall mounted
Mounting Plate Width Mm: 200
Mounting Plate Height Mm: 300
Number Of Mounting Holes: 6
Mounting Hardware Included: false
Professional Installation Required: true
Support Arm Material: Steel
Frame Material: Steel tubing
Grip Material: Plastic
Strap Material: Plastic textile
Mounting Plate Material: Painted steel
Color: Grey
Support Arm Length Mm: 730
Swivel Function: true
Swivel Range: Semicircle with a 73 cm radius
Grip Shape: Triangular
Grip Height Adjustable: true
Strap Adjustment Range Cm: 34–50
Maximum Vertical Load Kg: 100
Product Weight Kg: 11.5
Operating Temperature C: 10–60
Expected Service Life Years: 10
Required User Capability: Sufficient residual upper-body and arm strength
Vertical Loading Only: true
Caregiver Assistance Recommended: true
Cleanable With Damp Cloth: true
Disinfectable: true
Monthly Safety Inspection Recommended: true
German Medical Aid Number: 19.40.02.2023
German Nursing Aid Number: 50.45.02.2023
Original Manufacturer Product: true
Quantity Supplied: 1
€169,70
