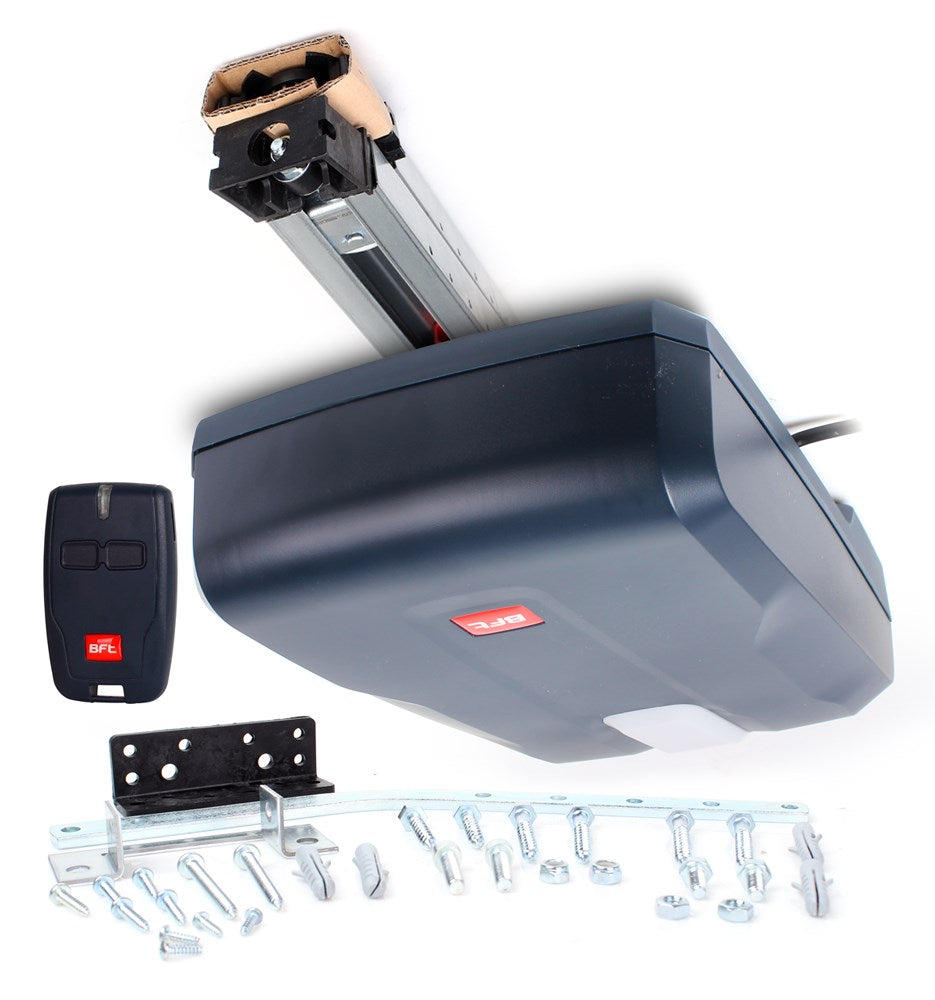

BFT Botticelli BT A 650 29 KIT - BELT Intended use Electromechanical operator with a 24V motor with encoder (D-Track), for medium-intensive use. Maximum door area 10 m2. Maximum opening speed 12.6 m/min. Designed for sectional garage doors with a pulling force of 60 kg. The kit includes: BFT Botticelli BT A650 operator with a VENERE BT A ETD control unit (P915211 00002); Guide rail with 2900mm long belt (P115037 00001); BFT Mitto B2 remote control; Mounting accessories, including emergency release mechanism from the INSIDE; Description Kit for residential garage doors with a pulling force of up to 650N. It is designed for gates with an area of up to 10 m2. It has a 24V motor and a built-in VENERE BT A ETD control unit with buttons and potentiometers. The control unit has an integrated CLONIX64 two-channel radio receiver with a dynamically rolling code. Safety is ensured by the amperometric obstacle detection function and D-TRACK technology, thanks to which the control unit adjusts the force to the environmental conditions. The drive has a soft start option for opening and closing. NO U-LINK PROTOCOL. Technical Specifications Control unit: Venere BT A ETD; Power supply voltage: 230V 50Hz; Motor supply voltage: 24 V; Power consumption: 200W; Maximum force: 650N; Number of cycles per day for 60 degrees Celsius/for 20 degrees Celsius: 50/130; Maximum gate area: 10m2; Built-in lighting: Yes, LED type; Maximum opening speed: 210 mm/sec. (12.6 m/min.); Obstacle detection: YES (D-Track); Obstacle detection type: Electronic; Limit switches: Yes, encoder + mechanical limiter in opening; Slowdowns: YES; Operating temperature: from -20 C to +60 C; Gear lubrication: Grease; Lock: mechanical; Unlocking: String; Waterproof class: IP20; VENERE BT A ETD control unit for one 24V garage drive; Control unit supply voltage: 230V AC; Motor supply voltage: 24V DC 100W; Main features: programming using DIP switches and potentiometers, built-in two-channel receiver, D-Track anti-crushing system, slowdown during opening and closing, soft start on opening and closing.; Main functions: automatic closing function, torque management (separate threshold adjustment for opening and closing).; .
€187,67
