Description

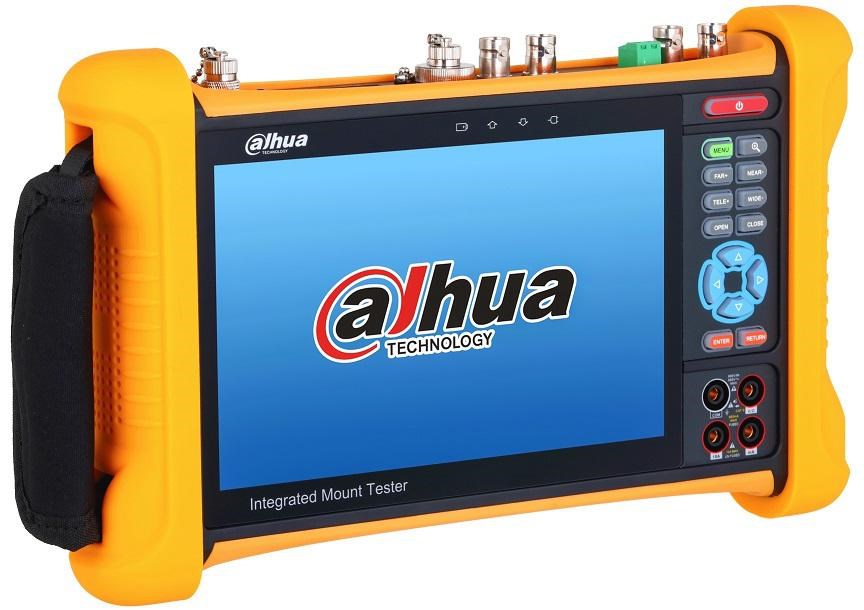

The Dahua DH-PFM906-E-V2 is a professional integrated mount tester designed for installation, testing and maintenance of CCTV and IP video surveillance systems. It supports IPC, HDCVI, AHD, HDTVI, CVBS and SDI video display and provides both HDMI input and HDMI output for flexible monitoring. The unit delivers PoE, a 12 VDC 2 A power output and a 5 V 2 A USB power output for camera powering. Built-in TDR network cable testing, cable tracing, Wi-Fi connectivity, an optical power meter and a digital multimeter add advanced diagnostic capabilities. A 7-inch 1920×1080 capacitive IPS touchscreen enables clear field operation, while RS-485 control, RJ45 and BNC ports, audio input/output and a MicroSD card slot support recording and control. Measuring 270×160×46 mm (W×H×D) and weighing 950 g, the tester is finished in yellow for visibility on site.
Key Features
- Supports IPC, HDCVI, AHD, HDTVI, CVBS and SDI video formats
- 7-inch 1920×1080 capacitive IPS touchscreen
- HDMI input and HDMI output
- PoE power output
- 12 VDC 2 A power output
- 5 V 2 A USB power output
- TDR network cable testing
- Cable tracing function
- Optical power meter
- Digital multimeter
- Wi-Fi connectivity
- RS-485 control
- RJ45 ports
- BNC ports
- MicroSD card slot
- Audio input and output
Specifications
Brand: Dahua
Model Number: DH-PFM906-E-V2
Product Type: CCTV camera tester
Color: Yellow
Display Size Inch: 7
Display Type: Capacitive IPS touchscreen
Display Resolution: 1920×1080
Hdmi Input: true
Hdmi Output: true
Poe Support: true
Power Output: 12 VDC 2 A
Usb Power Output: 5 V 2 A
Tdr Network Cable Test: true
Cable Tracker Function: true
Wi Fi: true
Optical Power Meter Function: true
Digital Multimeter Function: true
Rs 485 Control: true
Rj45 Ports: true
Bnc Ports: true
Audio Input: true
Audio Output: true
Micro Sd Card Slot: true
Width (mm): 270
Height (mm): 160
Depth (mm): 46
Weight (g): 950
€1.410,47
