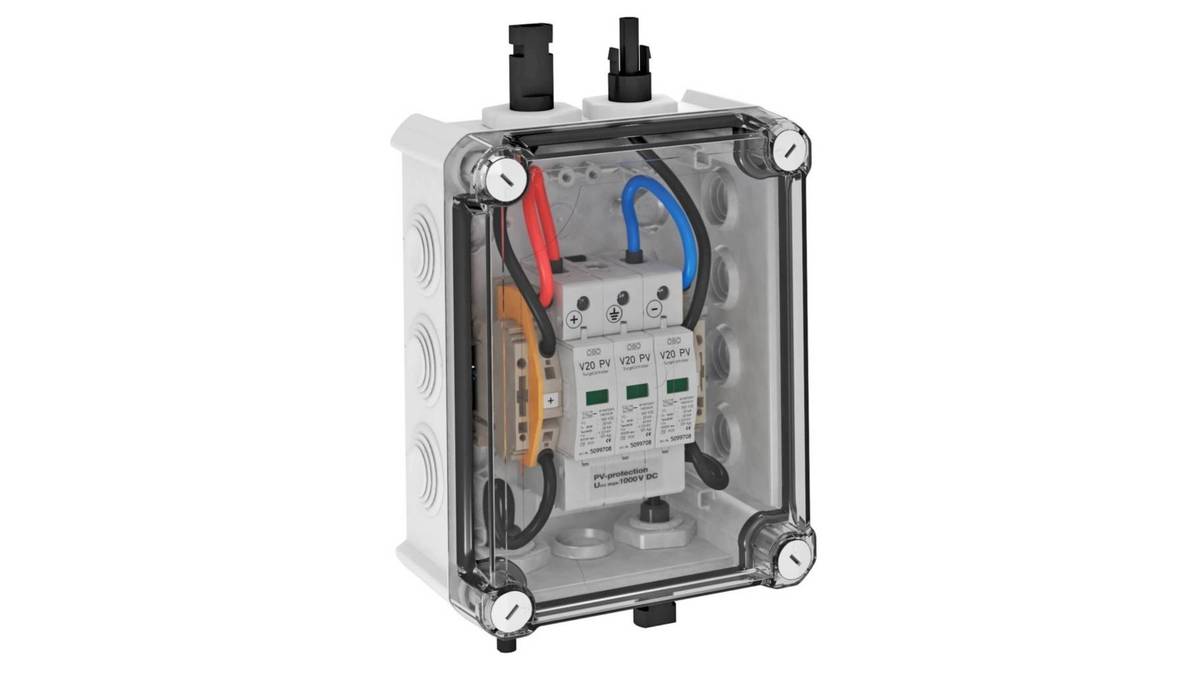

OBO Bettermann PV-Systemlösung PVG-C1000S100 Manufacturer: OBO Bettermann Description: PV system solution in enclosure Type: PVG-C1000S100 Number of inputs: 1 Max. DC voltage measuring range: 1000 V Width: 190 mm Height: 150 mm Depth: 94 mm String protection: none Degree of protection (IP): IP66 Impact resistance: IK05 Test class type 1: no Test class type 2: yes Test class type 3: no Monitoring function: no Operating temperature: -5.60 °C Max. output current: 30 A Colour: grey Number of cable inputs: 4 Input type: other OBO Bettermann PV-Systemlösung PVG-C1000S100: more details Type 2 system solution with MC4 connector for PV inverters with 1 MPP tracker. Varistor arrester, pluggable with disconnect device in Y configuration, fail-safe according to VDE 0100-712 (50539-12). Low DC protection level: 4.0 kV (Uoc max 1000V DC at V20-C/0-500PV). One PV string input (MC4 connector) to one MPP-WR input, up to 30A DC per terminal, pre-assembled in polycarbonate enclosure (IP66), UV-resistant for outdoor use. For DC protection of the inverter of PV systems. If there is a risk of condensation forming due to wind, ice, temperature or sun, additional measures may be necessary! EAN: 4012196816095.
€213,33
