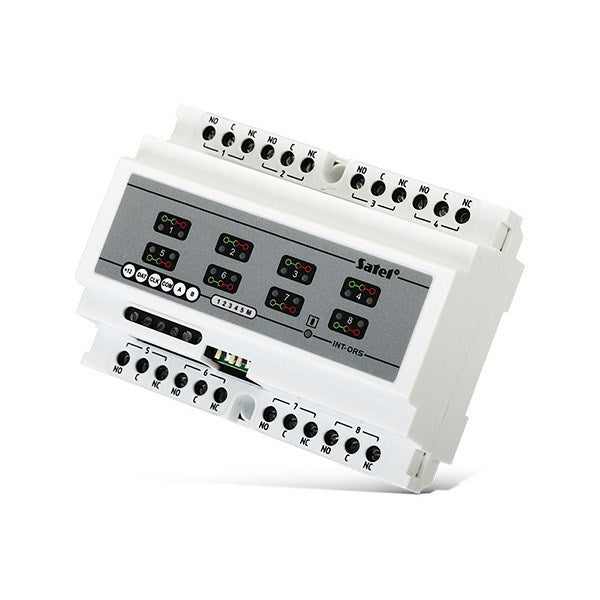

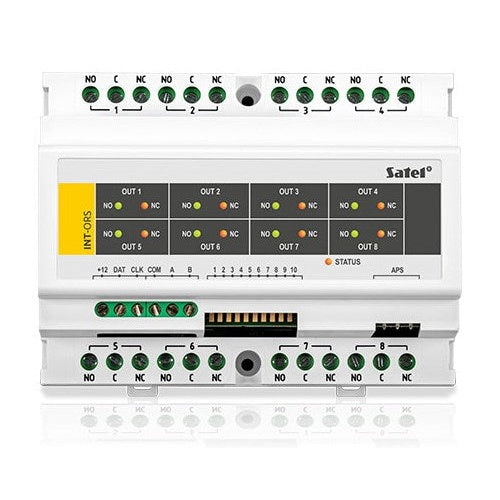

INT-ORS OUTPUT EXPANDER FOR 35MM DIN RAIL The INT-ORS module expands INTEGRA/VERSA/PERFECTA and ACCO NET systems with 8 programmable relay outputs. It is designed for direct control of 230V devices using alarm control panels from the INTEGRA, INTEGRA Plus, VERSA, VERSA Plus, and PERFECTA families. This module is also an excellent solution for utilizing the capabilities offered by these control panels to create an automation system. This device can also be used with ACCO-NT access control panels. INT-ORS is designed for mounting on a standard 35mm DIN rail. Expands the system with 8 relay outputs (direct control of electrical devices powered by 230V AC voltage); designed for mounting on a 35mm DIN rail; works with the ACCO NET system (from release 1.4); visualizes the relay status using LEDs; Technical data: Maximum number of outputs: 8; Supply voltage (15%): 12 V DC; Operating temperature range: -10...+55 °C; Standby current consumption: 35 mA; Maximum current consumption: 310 mA; Weight: 285 g; Maximum humidity: 93.3%; Occupied number of 17.5 mm modules: 7; Dimensions: 122 x 93 x 58 mm; Environmental class according to EN50130-5: II; Relay output load (resistive load): 16 A / 230 V AC; +12V output load: 2.5 A / 12 V DC; .
€143,57
