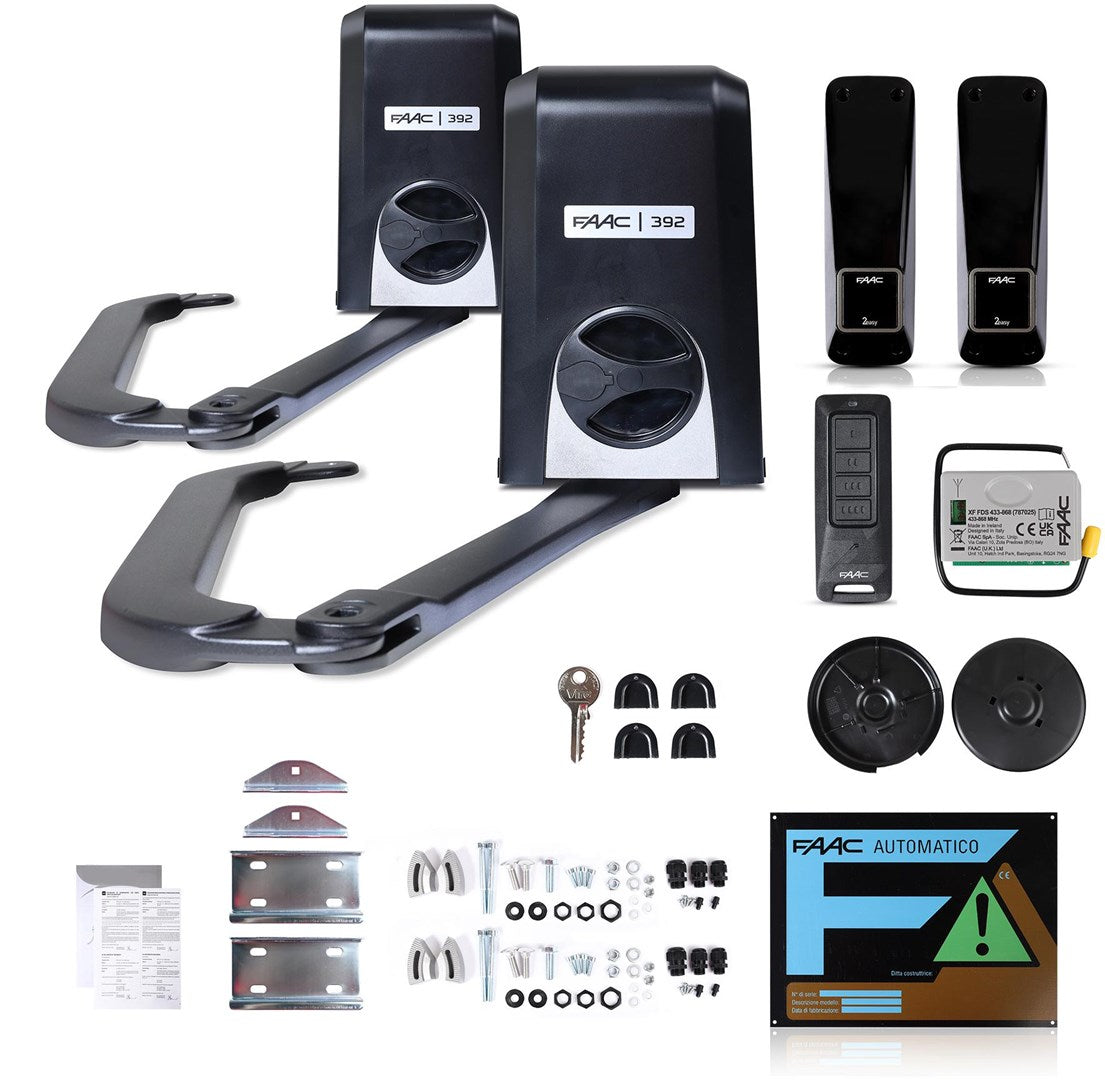

Energy FDS - FAAC 392 24V Kit for 5m Double-Leaf Gates from Faac. Energy FDS - FAAC 392 24V Kit for 5m Double-Leaf Gates Model: 1045854 Intended Use: A complete set of electromechanical operators with articulated arms for residential swing gates. Suitable for gates up to 2 meters long (or 2.5 meters with an electromagnetic lock). The maximum weight of a single gate leaf should not exceed 300 kg. The FAAC Energy 392 starter kit is the ideal solution for wide gate posts, allowing you to operate gates with a clear opening of up to 5 meters. Key features: Compact, elegant design. Width, the most important dimension, does not exceed 185 mm!; Simple installation. The articulated arm provides great flexibility, allowing installation on wide posts.; Thanks to the self-locking drive, there is no need to install electromagnetic locks. In the event of a power failure, an easy-to-use release system (with an individual key) allows you to open and/or close the gate.; Built-in mechanical locks: no need to install mechanical opening and closing locks.; New E034S control unit with very wide possibilities; A backup battery guarantees operation in the event of a power failure (available as an option). ; Technical specifications. Power supply voltage: 220-240 V AC 50/60 Hz; Motor type: Brushed, 24 V DC; Max. thrust: 300Nm; Max. angular speed: 8.5°/sec.; Max. leaf opening angle: 120°; Ambient operating temperature: -20°C + 55°C; Protection rating: IP44; Frequency of use: continuous; E034S control unit specifications. Display: YES; BUS bus: YES; STOP input: YES; Lamp output: YES (24V); Electric lock output: YES; 3-PIN input OMNIDEC receiver: YES; Programmable output (OUT 1): YES; Number of operating logics: 7; Force adjustment: Yes (range: 1-50 adjustable separately for each leaf F1, F2); Opening/closing speed adjustment: Yes (range: 1-10 uniform in both directions for both leaves); Manual operation of the actuator (N1, N2): YES; Opening slowdown distance: Yes (range: 0-99 adjustable separately for each leaf r1, r2); Closing slowdown distance: Yes (range: 0-99 adjustable separately for each leaf r1, r2); Opening leaf delay adjustment (Od): Yes (range: 00 - 1.3); Closing leaf delay adjustment (Od): Yes (range: 00 - 1.3); Light touch: YES; Light start: YES; OPEN A (PA) pause time adjustment: Yes (range: 00 - 9.5); OPEN B (PB) pause time adjustment: Yes (range: 00 - 9.5); Pedestrian gate function: YES; Anti-crush sensitivity adjustment - obstacle detection (EC): Yes (range: 00 - 10); Self-learning function: YES; FSD compatibility (via OMNIDEC): YES; Simply Connect compatibility: YES;.
€771,85
