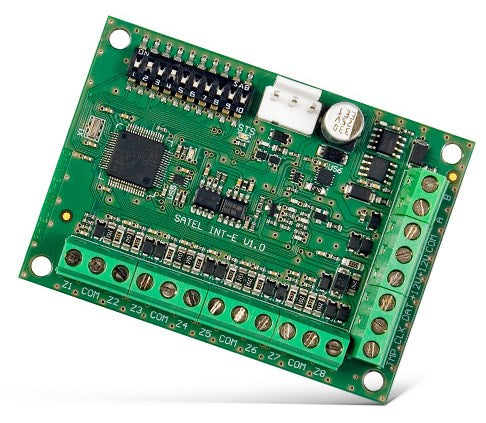

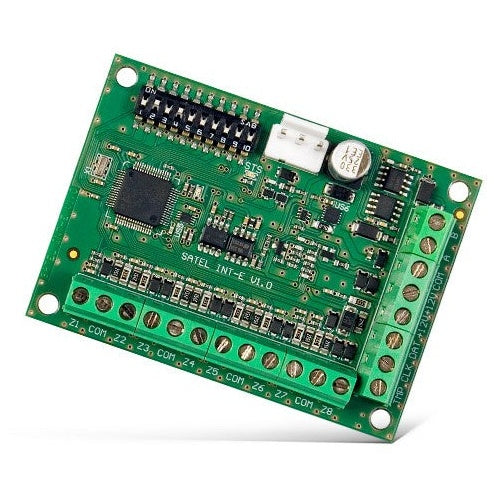

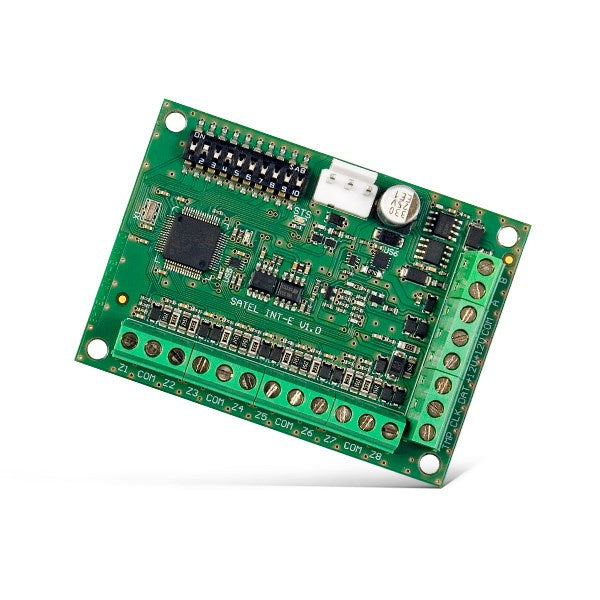

INT-E SATEL 8-ZONE EXPANDER FOR INTEGRA, VERSA AND PERFECTA CONTROLS The module is dedicated to the INTEGRA, INTEGRA Plus, VERSA, VERSA Plus, PERFECTA and PERFECTA-T alarm control panels, as well as to the ACCO-NT access control panel. This device replaces the CA-64 E/CA-64 EPS module. INT-E offers system expansion with 8 wired zones and enables direct connection of roller shutter and vibration detectors. An additional tamper input facilitates detection of unauthorized opening of the enclosure in which the module is located. FEATURES: . system expansion with 8 zones ; support for NO, NC, EOL, 2EOL/NO, 2EOL/NC, 3EOL (for INTEGRA Plus) configurations; programming of parametric resistance values; support for vibration and roller shutter detectors; can be connected to the RS-485 bus (software update via the bus); security grade: GRADE 3 ; is a universal solution - replaces the CA-64E expander, after adding a power supply it replaces the CA-64 EPS expander ; Technical data: . Supply voltage (15%): 12 V DC; Standby current consumption: 35mA; Maximum current consumption: 80mA; Weight: 47g; Dimensions: 80 x 57 mm; Operating temperature range: -10...+55 °C; +12V output load capacity: 2.5 A / 12 V DC; Maximum humidity: 933%; Environmental class according to EN50130-5: II; Security grade according to EN 50131 (without power supply): Grade 3; Security grade according to EN 50131 (with APS-412 power supply): Grade 2; .
€73,59
