Description

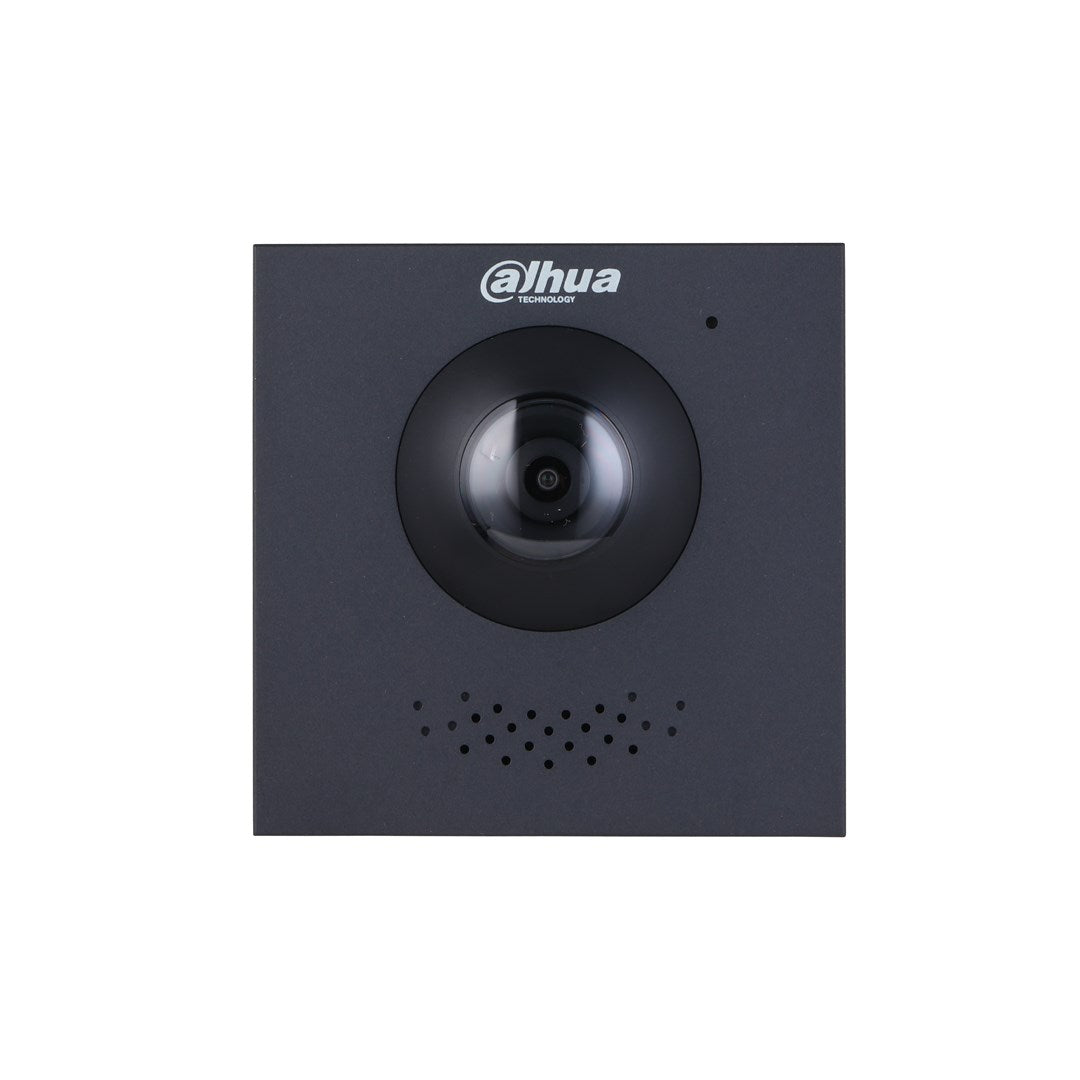

The Dahua DHI-VTO4202FB-P-S3 is a modular IP video intercom camera module for the Dahua VTO4202FB platform. It features a 2 MP low-light CMOS sensor with a 168.6° viewing angle and supports both two-wire and IP communication. The module enables video calls, audio communication and remote door unlocking via mobile app, with H.265/H.264 compression and PoE (IEEE 802.3at) or 12 V DC/600 mA power options. Its black anodized aluminium front panel carries IP65 and IK07 ratings and measures 100 × 100 × 6 mm for flush or surface mounting.
Key Features
- 2 MP low-light CMOS camera
- 168.6° viewing angle
- Two-wire and IP communication
- H.265 and H.264 video compression
- Remote door unlocking via mobile app
- PoE support (IEEE 802.3at)
- 12 V DC power output
- 600 mA max current
- IP65 rating
- IK07 impact protection
- Anodized aluminium black front panel
- Flush or surface mount
- 100×100×6 mm module
Specifications
Brand: Dahua
Model Number: DHI-VTO4202FB-P-S3
Product Type: Video intercom camera module
Image Sensor: CMOS
Camera Resolution Mp: 2
Viewing Angle Deg: 168.6
Installation Types: Flush mount, Surface mount
Communication Methods: Two-wire, IP
Video Compression: H.265, H.264
Power Output V: 12
Maximum Output Current Ma: 600
Poe Support: true
Poe Standard: IEEE 802.3at
IP Rating: IP65
Impact Protection: IK07
Front Panel Material: Anodized aluminium
Front Panel Color: Black
Width (mm): 100
Height (mm): 100
Depth (mm): 6
Quantity Supplied: 1
Original Manufacturer Product: true
€266,76
