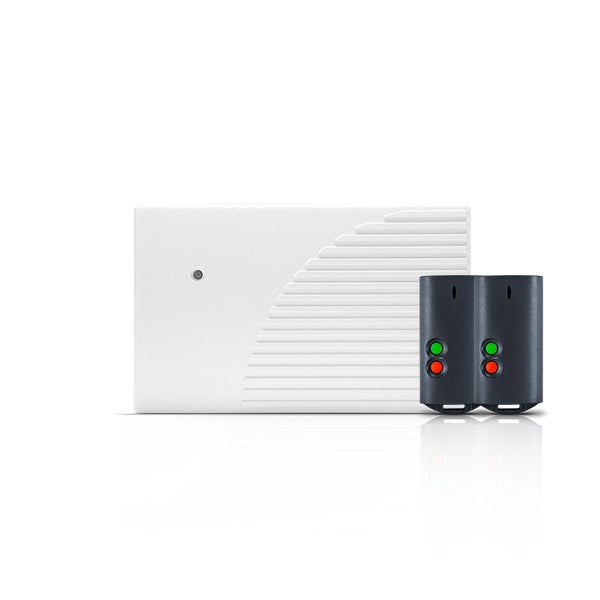

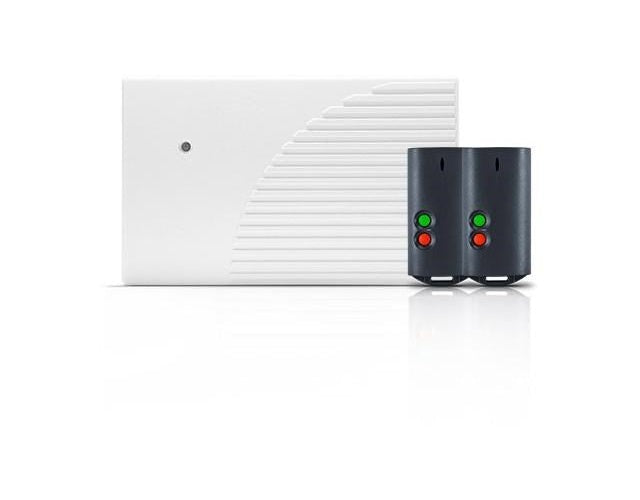

RK-2K RADIO CONTROLLER SATEL SATEL. Operating range in open area: up to 350 m ; Number of controlled inputs: 2 ; Selected functions: 2 independent, programmable channels . Weight: 0.1640; Length: 170; Width: 80; Height: 35; The RK-2K radio controller enables remote control of electrical devices using radio transmitters (keyfobs) The controller can work with a maximum of 1024 keyfobs The controller supports only keyfobs manufactured by SATEL The controller's interaction with alarm systems is facilitated by inputs informing about the system status. These allow easy organization of arming/disarming and alarm clearing indication. The design is based on Microchip Technology Inc. KEELOQ components. This ensures both safety of use and immunity to spurious control signals from other devices. Operating range in open area: up to 350 m Number of controlled inputs: 2 Relay operating modes: Bistable, monostable, pulse Time adjustment range in monostable mode: 1& xa0.. 3600 s Frequency range: 433.05 MHz.. 434.79 MHz Dynamically changed code in KEELOQ technology: Supply voltage: 12 V.. 24 V DC 10 % 24 V AC 10 % Current consumption (min. / max.): about 18 mA / about 40 mA Relay contacts load capacity: 1 A 24 V DC / AC LV (OC) output load capacity: 50 mA SS (OC) output load capacity: 500 mA Selected functions: 2 independent, programmable channels Support for up to 1024 remote controls Low battery indication in the remote control Confirmation of arming/disarming, armed mode/alarm reset Port RS-232 Receiver operating temperature range: -10& x a0.. 50 °C Transmitter (remote control) operating temperature range: -20& x a0.. 55 °C Dimensions: 72 x 118 x 24 mm Weight: 0.09 kg Manufacturer / Brand: SATEL Warranty: 2 years.
€71,18
