Description

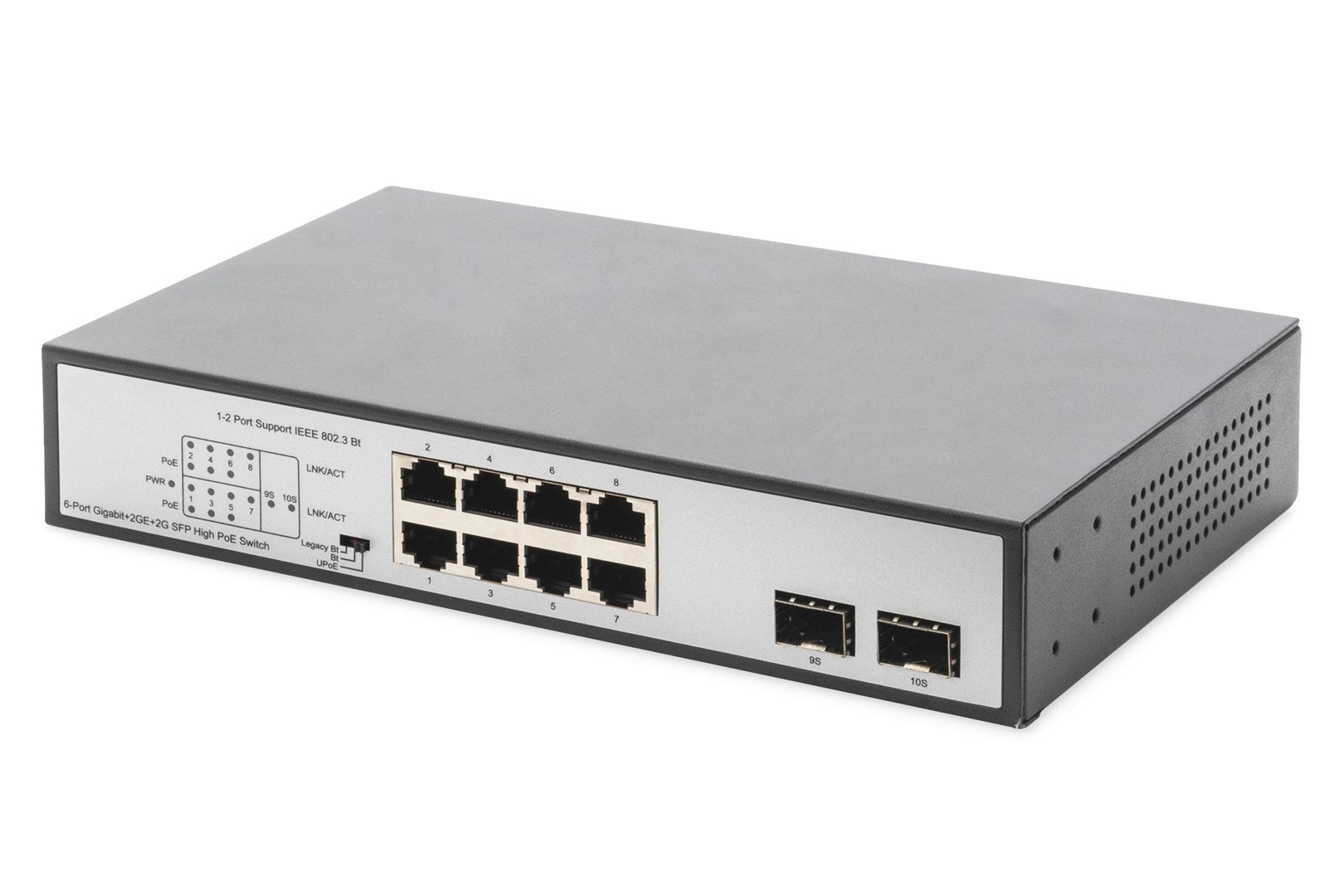

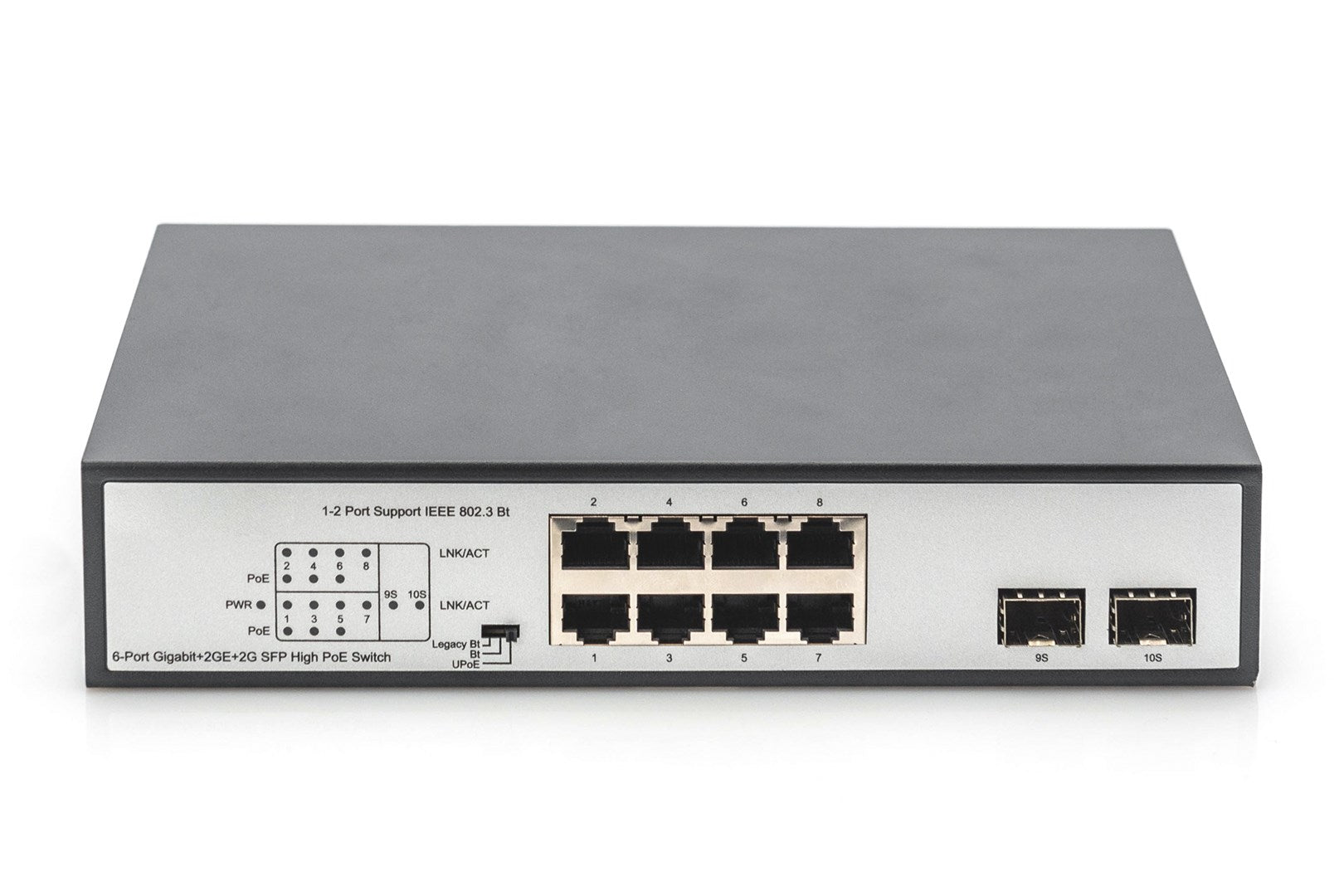

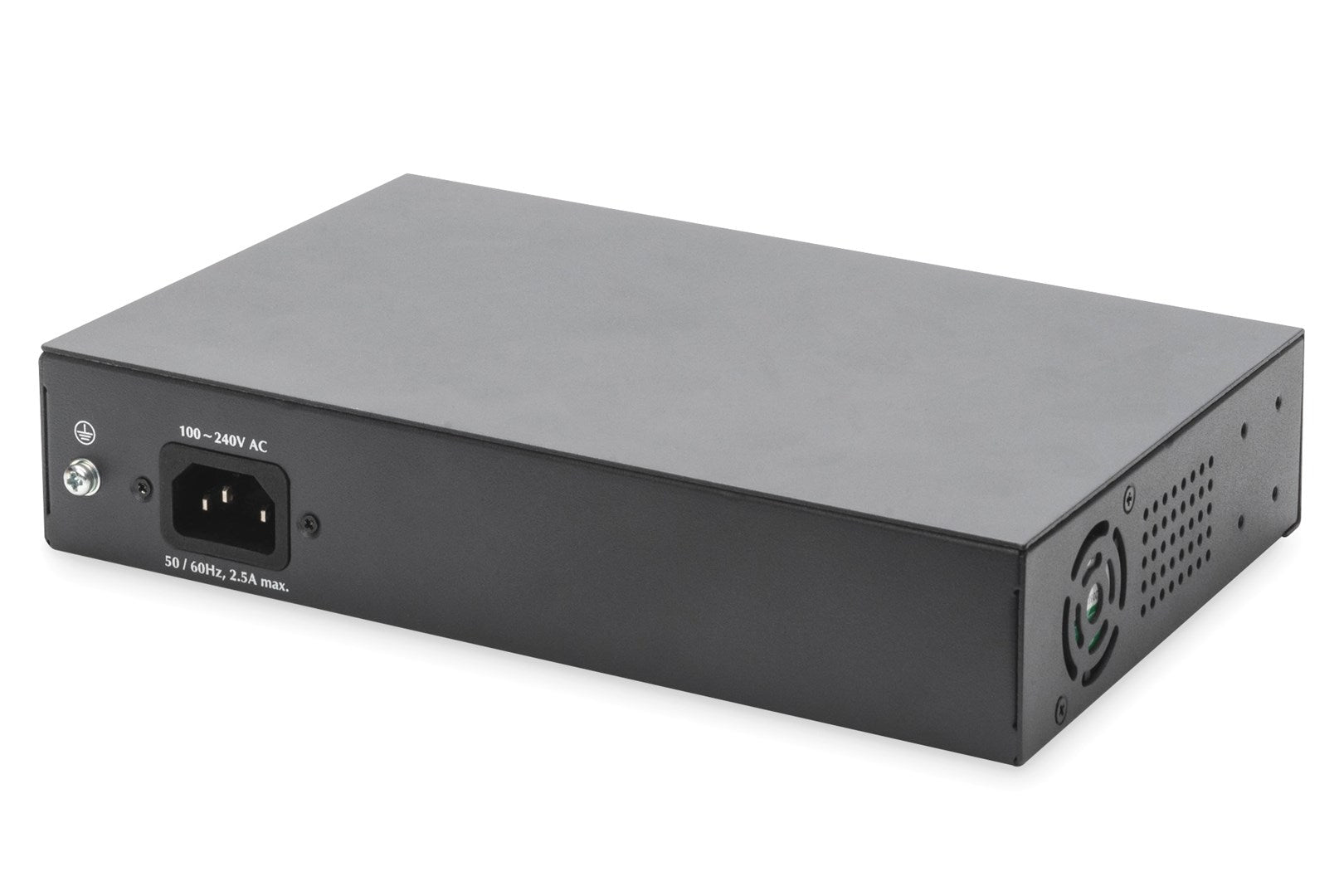

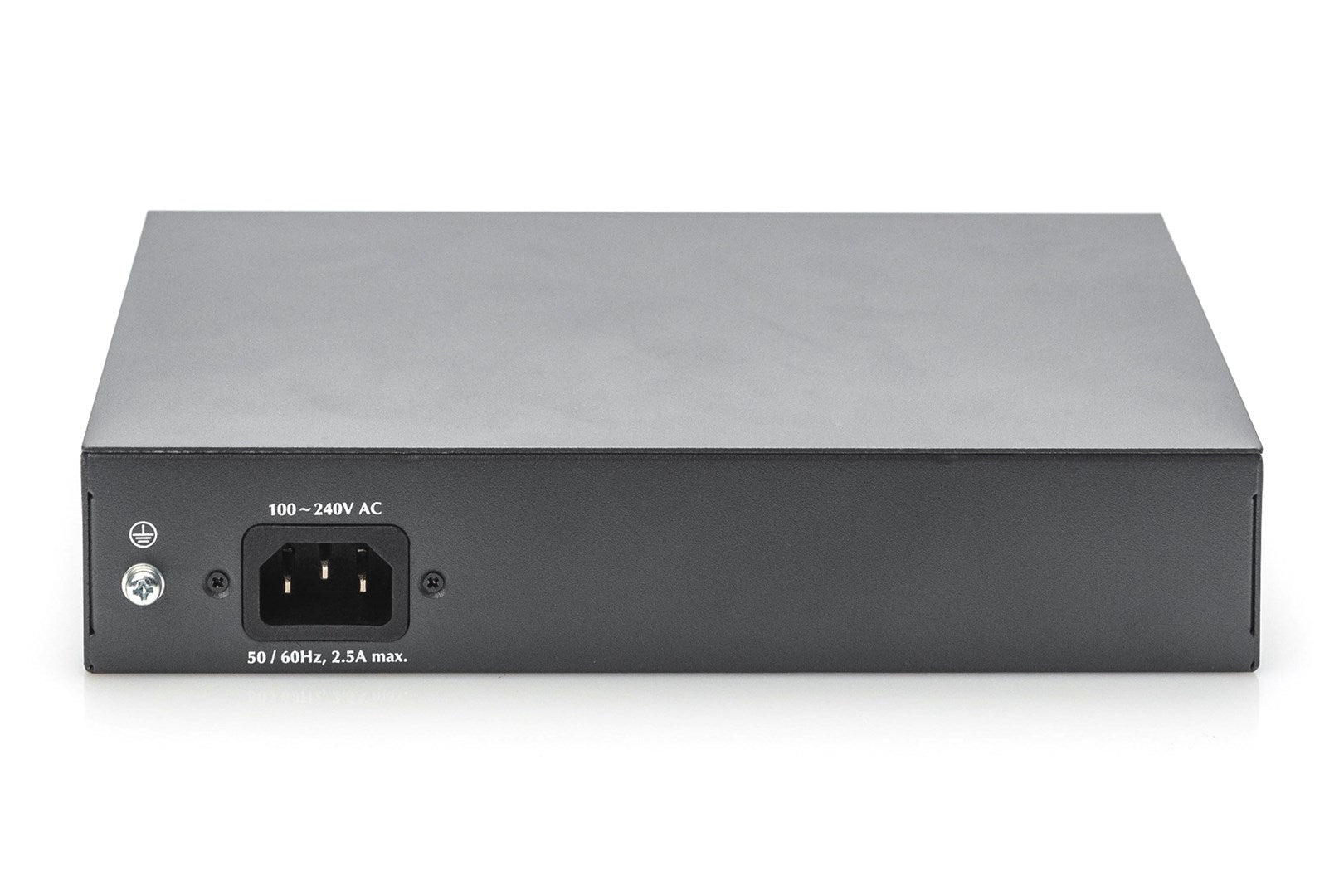

The DIGITUS DN-95140 unmanaged switch features six Gigabit Ethernet PoE ports delivering 30 W per port and a total PoE budget of 180 W, along with two additional Gigabit Ethernet ports and two Gigabit SFP uplink slots. It supports IEEE 802.3bt with auto MDI/MDIX, auto-negotiation and VLAN support, and handles 13.39 Mpps forwarding rate with a 20 Gbit/s switching capacity. The black desktop-mountable housing measures 150 × 220 × 44 mm and operates from 100–240 V AC at 50–60 Hz, consuming up to 190 W. Internal traffic is buffered in 1.5 MB memory and managed across 4000 MAC address table entries.
Key Features
- 6 x Gigabit Ethernet PoE ports
- 180 W total PoE budget
- 2 x Gigabit SFP uplink slots
- 20 Gbit/s switching capacity
- Unmanaged IEEE 802.3bt switch
- 13.39 Mpps forwarding rate
Specifications
Brand: DIGITUS
Model Number: DN-95140
Product Type: Switch
Color: Black
Power Source: AC
Power (W): 190
Switching Capacity Gbit S: 20
Forwarding Rate Mpps: 13.39
Jumbo Frame Size: 9216
Jumbo Frames Supported: true
Mac Address Table Entries: 4000
Packet Buffer Memory Mb: 1.5
Rj45 Ports: 8
Sfp Slots: 2
Poe: true
Poe Ports: 6
Poe Power Per Port W: 30
Poe Budget W: 180
Weight (g): 1340
Width (mm): 150
Height (mm): 44
Depth (mm): 220
€301,16
