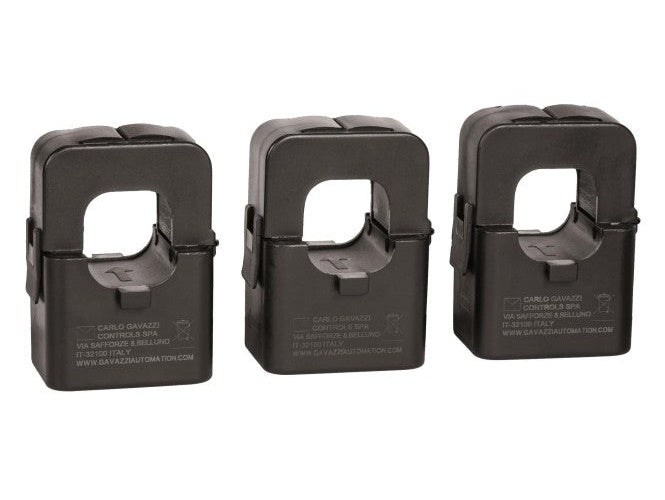

Cable-mounted current transformers for eMS home: The eMS CT is a set of three cable-mounted current transformers for installation on the live conductors in residential electrical installations. In conjunction with the eMS home energy and load management system, these three transformers indirectly measure the current energy consumption at the grid connection point up to 300 A. Based on this measurement, eMS home can then dynamically adjust the charging current and efficiently distribute it in individual and group installations with up to six eMH1 wallboxes. Using the eMS CT eliminates the need to cut the cable. The connection to the eMS home system is made via the integrated 0.5 m long cables of the cable-mounted current transformers. Cable-mounted current transformer, primary rated current 300 A, secondary rated current 5 A, secondary rated apparent power 2.5 VA, power consumption 2.5 W, accuracy class 1, calibrated no, with touch protection no, height of the installation material, meter screw/distribution board, charging infrastructure - ABL current transformer as an EMSCT accessory product, eMS home.
€308,92
