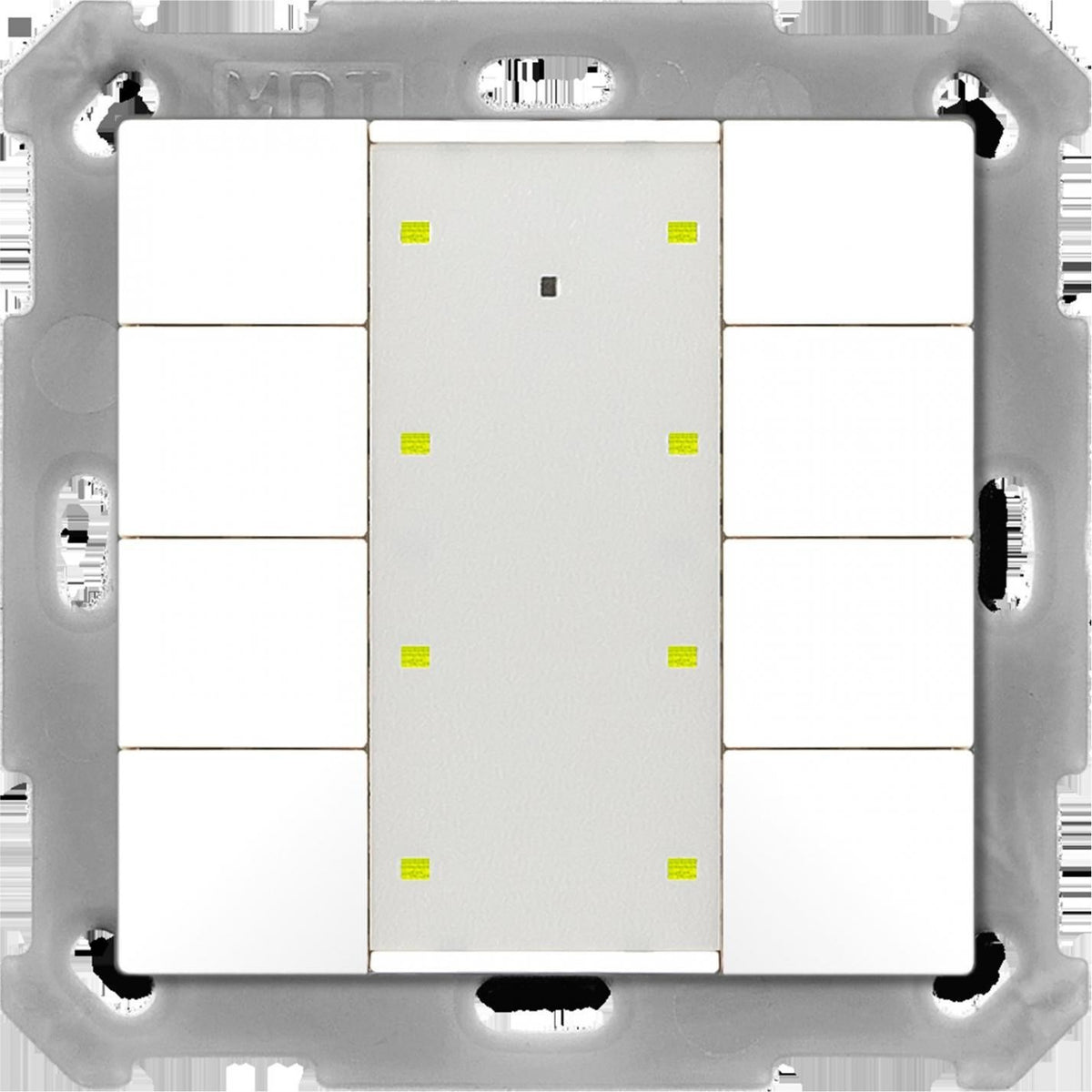

MDT technologies TS 55 plus button 8-gang BE-TA55T8.G2 Manufacturer: MDT technologies Designation: TS 55 plus button 8-gang pure white glossy Type: BE-TA55T8.G2 KNX bus system: Yes KNX radio bus system: No Radio bus system: No LON bus system: No Powernet bus system: No Other bus systems: Without radio Bidirectional: No Mounting type: Flush-mounted With anti-theft/disassembly protection: No With bus coupling: Yes Number of actuation points: 8 Number of buttons: 8 With LED display: Yes With labelling field: Yes With display: No Material: Plastic Material quality: Thermoplastic Surface finish: Glossy Colour: White RAL number (similar): 9010 Transparent: No With room thermostat: No With infrared sensor: No Protection class (IP): IP20 Minimum depth of the device box: 35 mm Further details: TS 55 plus button 8-gang, white Pure polished. Version with 8 buttons and temperature sensor. LEDs for operation/status and orientation light. Suitable for 55 mm switch ranges such as GIRA Standard 55, E2, E22, Event, or BERKER S1, B3, B7 or JUNG A 500, A PLUS, A Creation, AS 500, A550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure. Temperature sensor for recording the room temperature. Central labeling field with protective film for customized labeling. The buttons can be customized as pairs of buttons or as single buttons. Operation with one or two buttons for switching, dimming, shutters, values. Innovative group control with long/extra-long button press. Activation of values/scenarios with up to 4 values. Short/long button press with 2 objects. 4 logic blocks. 8 operation/status LEDs (red/green) and orientation light can be controlled independently. Switching object for controlling LED priority. Installation in switch box with supplied support ring. Integrated bus coupling unit. EAN: 4251916112530.
€180,89
