Description

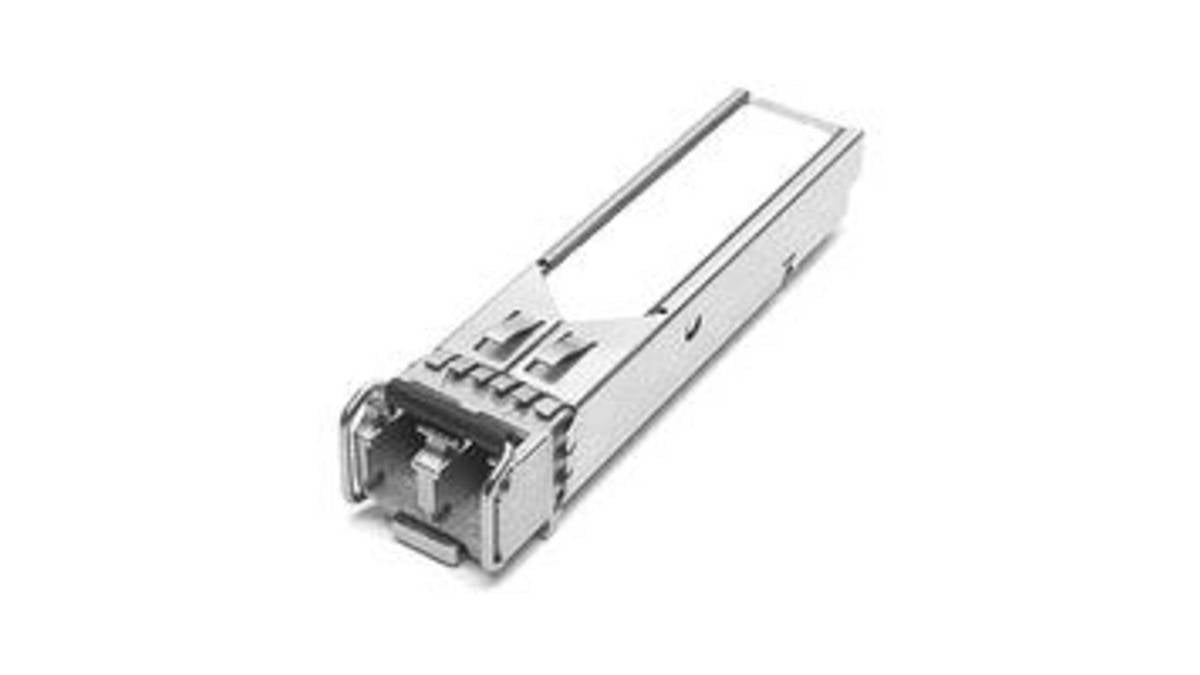

The Fujitsu SFP+ transceiver module S26361-F3986-L3 delivers 10 GbE data transmission over LC multi-mode fiber with support for 50/125 µm and 62.5/125 µm cable diameters. It offers a maximum reach of 300 m and features Auto MDI/MDI-X as well as hot-plug capability in compliance with SR (short reach) standards. The module operates between 0 °C and 70 °C with storage tolerance from –40 °C to 85 °C and relative humidity ranges of 10–80 % (operating) and 10–85 % (storage). Its compact form factor measures 13.4 mm in width, 8.5 mm in height and 56.5 mm in depth and meets MSA certification.
Key Features
- 10 GbE data rate
- LC multi-mode connector
- 300 m max transmission range
- Supports 50/125 and 62.5/125 µm MMF
- Auto MDI/MDI-X
- Hot-pluggable
Specifications
Brand: Fujitsu
Model Number: S26361-F3986-L3
Product Type: SFP+ transceiver
Max Data Rate Mbit Per S: 10000
HS Code: 85369010
Max Range M: 300
Auto Mdi Mdix: true
Hot Plug Support: true
Supported Fiber Diameters Um: 50/125, 62.5/125
Sfp Transceiver Standard: SR
Operating Temperature C: 0 - 70
Storage Temperature C: -40 - 85
Relative Humidity Operating Percent: 10 - 80
Relative Humidity Storage Percent: 10 - 85
Width (mm): 13.4
Height (mm): 8.5
Depth (mm): 56.5
Certification: MSA
€398,63
