Description

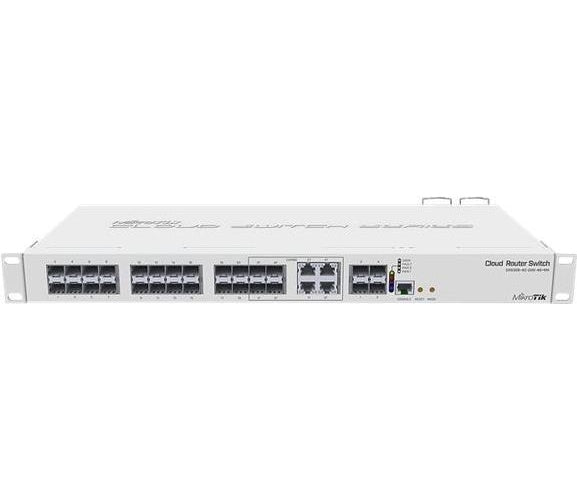

The MikroTik Cloud Router Switch CRS328-4C-20S-4S+RM is a managed Layer 2/Layer 3 1U rack-mount switch designed for enterprise networks and data centres. It provides 20 SFP ports, 4 SFP+ 10G ports and 4 combo SFP ports with a switching capacity of 128 Gbit/s and a forwarding rate of 95.2 Mpps. The switch supports VLAN, link aggregation, port mirroring, broadcast storm control, ACL and IGMP snooping while maintaining a 16 000-entry MAC address table. Powered by an ARM 32-bit 800 MHz processor with 512 MB RAM and 16 MB flash, it runs on 100–240 V AC (max 43 W) and operates from –20 °C to 60 °C. The white chassis includes LED indicators, a rack mounting kit and AC power cable.
Key Features
- 20 SFP ports
- 4 SFP+ 10G ports
- 4 combo SFP ports
- 128 Gbit/s switching capacity
- 95.2 Mpps forwarding rate
- VLAN support
- Link aggregation
- Port mirroring
- Broadcast storm control
- Access Control List (ACL)
- IGMP snooping
- 16 000-entry MAC table
- ARM 32-bit 800 MHz processor
- 512 MB internal memory
- 16 MB flash memory
- Rack-mountable 1U form factor
- LED indicators
Specifications
Brand: MikroTik
Model Number: CRS328-4C-20S-4S+RM
Product Type: Managed network switch
Rack Mountable: true
Form Factor: 1U rack mount
Sfp Ports: 20
Sfp Plus Ports: 4
Combo Sfp Ports: 4
Console Port: RJ-45
Vlan Support: true
Link Aggregation: true
Port Mirroring: true
Broadcast Storm Control: true
Access Control List: true
Igmp Snooping: true
Mac Address Table: 16000
Switching Capacity Gbit S: 128
Forwarding Rate Mpps: 95.2
Jumbo Frame Support: true
Maximum Jumbo Frame Size Bytes: 10218
Processor: ARM 32-bit
Processor Speed Mhz: 800
Internal Memory Mb: 512
Flash Memory Mb: 16
Power Supply Included: true
Input Voltage: 100–240 V AC
Power (W): 43
Poe Support: false
Operating Temperature C: -20 to 60
Color: White
LED Indicators: true
Width (mm): 443
Depth (mm): 200
Height (mm): 44
Included Accessories: Rack mounting kit
Included Cable: AC power cable
€487,53
