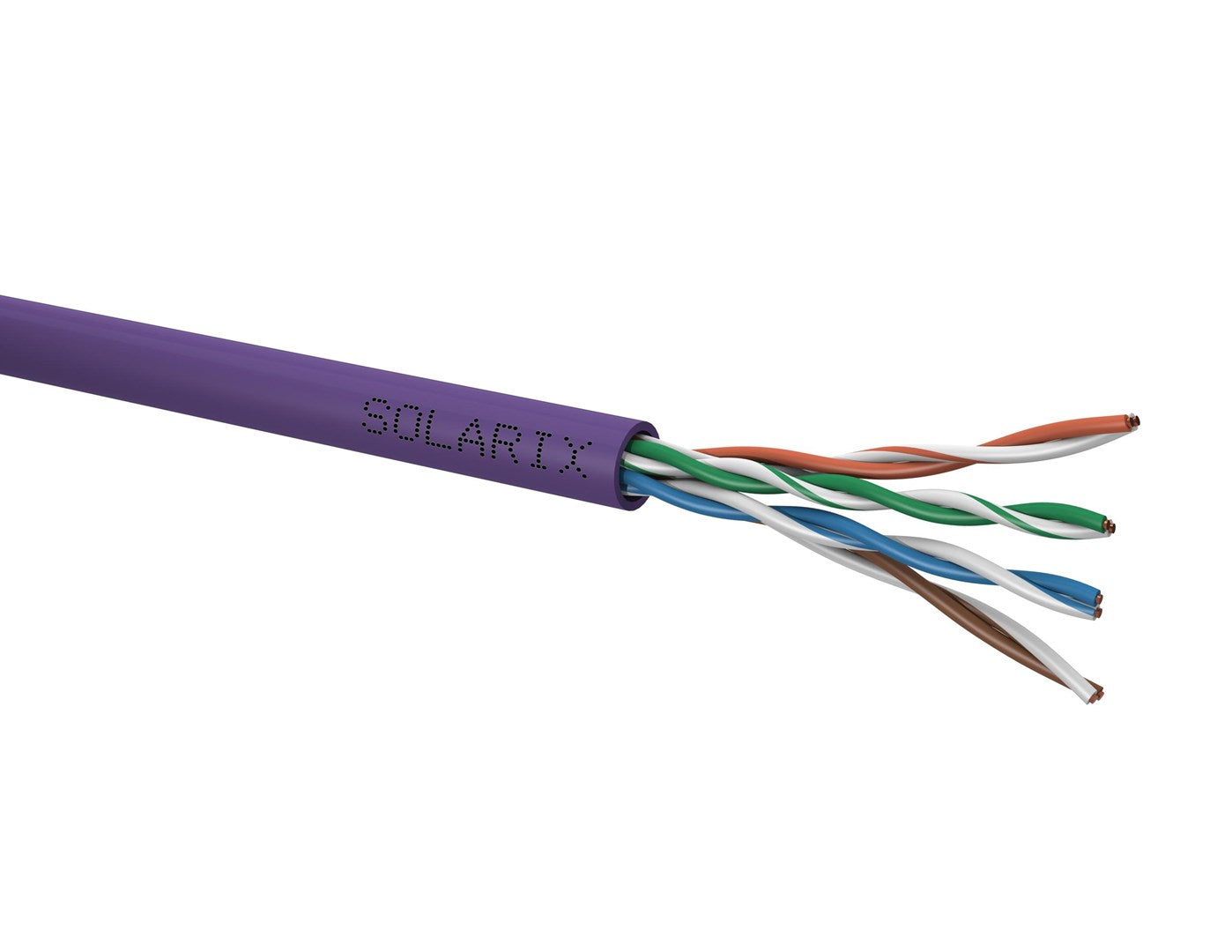

Attention!! Purple color!! Link to the manufacturer's website: https://www.solarix.cz/product.jsp?artno 27724119Technical parameters Category: CAT5E Highest supported protocol? : 1000BaseT Highest theoretical speed that can be achieved on the cable Shielding: no Bandwidth? : 100 MHz Available bandwidth Conductor? : copper wire 0.51 mm AWG 24 Conductor type and diameter Insulation? : polyethylene 0.9 mm Insulation type and diameter Sheath? : LSOH Sheath type Color: purple Cable diameter: 5.0 mm Weight: 35 kg/km NVP? : 68 % Nominal Velocity of Propagation - ratio of signal speed in the cable to the speed of light in % Propagation delay? : 535 ns/100m Signal delay on one pair Delay skew? : 20 ns/100m Difference in signal delay between the fastest and slowest pair Storage temperature: -20°C to 60°C Operating temperature: -20°C to 60°C Installation temperature: 0°C to 50°C This installation cable (so-called wire cable) with the designation SXKD-5E-UTP-LSOH is a reliable part of the Solarix - CAT5E product line. Together with other components of the Solarix structured cabling system, it creates a solution that guarantees long service life, maximum performance and trouble-free operation of the computer network. Solarix CAT5E installation cables are designed for horizontal distribution and are offered in shielded and unshielded versions with different types of sheath - i.e. PVC or LSOH. These cables easily meet and, above all, exceed the requirements defined in the international standards TIA/EIA 568, EN 50173 and ISO 11801 for CAT5E and are therefore suitable for the operation of the most demanding protocols intended for structured cabling (e.g. Gigabit Ethernet). The cables are marked with a meterage of 1 m. Solarix LSOH installation cables meet the following standards:A) Acidity of gases evolved during combustionIEC 60754-2: Test on gases evolved during combustion of electric cables - Part 2: Determination of degree of acidity of gases evolved during the combustion of materials taken from electric cables by measuring pH and conductivityČSN EN 50267-2-2: Common test methods for cables under fire conditions - Tests on gases evolved during combustion of materials taken from cables - Part 2-2: Procedures - Determination of degree of acidity of gases evolved during the combustion of cable materials by measuring pH and conductivityČSN EN 50267-2-3: Common test methods for cables under fire conditions - Tests for gases evolved during combustion of materials from cables - Part 2-3: Procedures - Determination of the degree of acidity of gases during combustion of materials from cables by determination of the weighted average pH and conductivity of composite materialsB) Smoke densityIEC 61034-2: Measurement of smoke density of cables burning under defined conditions - Part 2: Test procedure and requirementsČSN EN 61034-2: Мерение густоты комуре при борение кабелу за дэфинованных команды - Честь 2: Zkušebni postup a preuzimanja (this standard replaced ČSN EN 50268-2)C) Non-flammability/flame propagation of single insulated wire or cableIEC 60332-1-2: Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flameČSN EN 60332-1-2: Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame spread for single insulated wires or cables - Procedure for 1 kW mixed flame (this standard replaced ČSN EN 50265-2-1).
€190,48
