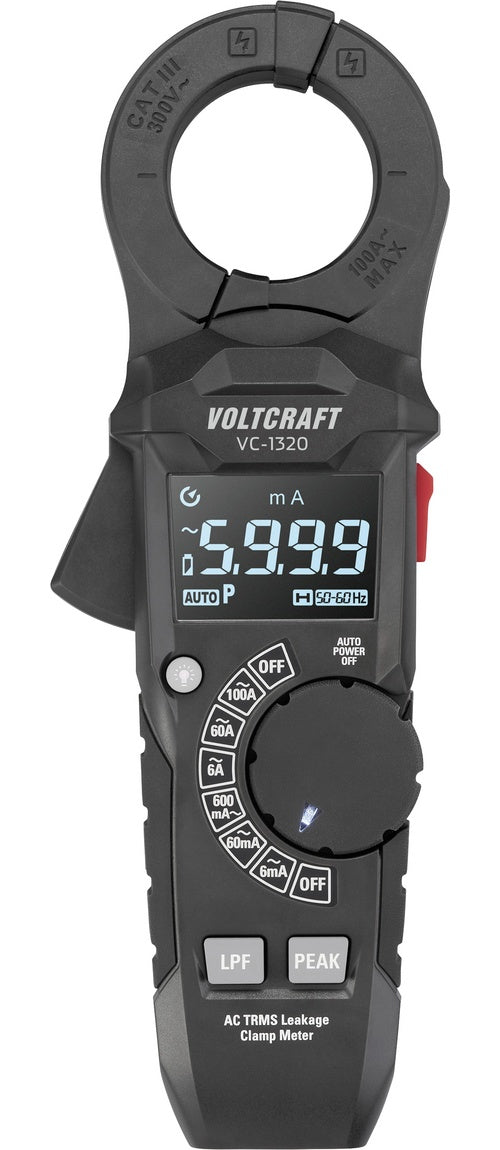

Precision and safety in leakage current measurements. The Voltcraft VC-1320 leakage current clamp is designed for the precise measurement of even the smallest leakage currents: With an ultra-high resolution of 1 A to 6,000 mA, it enables the diagnosis of even the smallest faults and AC current measurements from 0 to 100 A. Six measurement ranges are available: 6,000 mA, 60.00 mA, 600.0 mA, 6,000 A, 60.00 A, and 100 A. True RMS measurement always delivers reliable values, even with non-sinusoidal waveforms. Safety category CAT III 300 V according to EN61010 ensures safe use in low-voltage applications. Clever features: Thanks to the data hold function, measured values can be easily read even after the clamp has been removed. Over-range indications are signaled by the OL display. To reduce interference from external stray magnetic fields, the transformer arms of the VC-1320 are shielded. The clamp opening is 32 mm. To conserve battery power, the device switches off after approximately 15 minutes of inactivity. Clear and easy to read: The display shows the results with a resolution of 6000 counts and features a negative value indicator. In poorly lit work areas, the backlight on the buttons and switches ensures better usability, and the integrated flashlight illuminates the surroundings. Ready to use: The Voltcraft VC-1320 leakage current clamp is used to measure leakage currents.
€278,53
