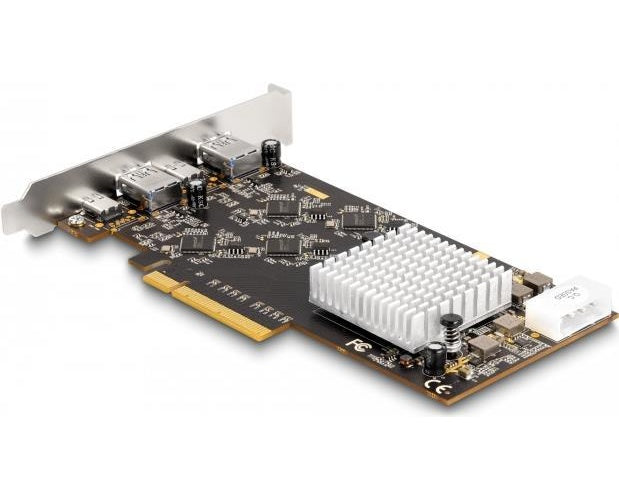

The PCI Express card from Delock expands your PC with four external USB 3.2 ports, two USB-C ports, and two USB Type-A ports. Various USB devices, such as docking stations, card readers, external cases, and more, can be connected to the card. Quad Channel The card is equipped with four ASM3242 chipsets, one for each USB port. This ensures high data transfer speeds of 20 Gbps on the USB Type-C ports and 10 Gbps on the USB Type-A ports when used simultaneously. Power Supply The PCIe card can be powered via the PCIe connection. If that isn't enough, the card has a 4-pin power connector. A maximum of 5 V/3 A is supplied to the USB Type-C ports and 5 V/0.9 A to the Type-A ports, for a maximum of 7.8 A across all ports combined. Specifications - Connections: External: 2 x USB 10 Gbps Type-A port 2 x USB 20 Gbps USB Type-C port Internal: 1 x 4-pin power connector 1 x PCI Express x8, V3.0 - Chipset: Asmedia ASM3242, Pericom PI7C9X3G816GP - Data transfer rates up to 20 Gbps - Backward compatible with USB 3.0, USB 2.0, USB 1.1 - Power supply via PCI Express interface or via the 4-pin power connector - Power per port: USB Type-A: max. 4.5 Watt (5 V / 0.9 A) USB Type-C: max. 15 Watt (5 V / 3 A) - Bootable - Supports UASP - Supports Extensible Host Controller Interface (xHCI) Specification 1.1 - Supports multiple INs System Requirements - Linux Kernel 5.15 or above - Windows 8.1/8.1-64/10/10-64/11 - Windows Server 2019 - PC with a free PCI Express x8 / x16 / x32 slot Package Contents - PCI Express Card - User Manual.
€321,57
