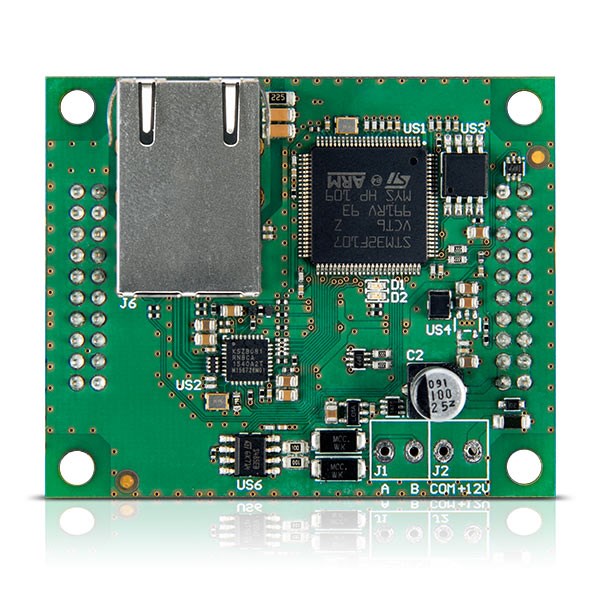

GSM-X-ETH Ethernet communication module SATEL GSM-X-ETH is a device designed to expand the communication options of universal GSM-X LTE and GSM-X modules with an Ethernet channel. This channel can be used in parallel to data transmission over the cellular network or as an alternative to it. Priority configuration of individual channels for specific functions is available. This option enables optimal adjustment of the GSM-X LTE and GSM-X module settings to the needs of a specific system. The Satel GSM-X-ETH module enables: interoperation with: GSM-X LTE , GSM-X , support for an additional Ethernet communication channel. Remote management of the alarm control panel (INTEGRA / INTEGRA Plus). Option to set communication channel priority. Sending event codes to the monitoring station. Technical data Electronics board dimensions: 61 x 51 mm ; Operating temperature range: -10..+55°C ; Standby current consumption: 25 mA ; Maximum current consumption: 25 mA ; Weight: 25 g ; Maximum humidity: 93.3%; Environmental class according to EN50130-5: II; Manufacturer code: GSM-X-ETH.
€120,64
