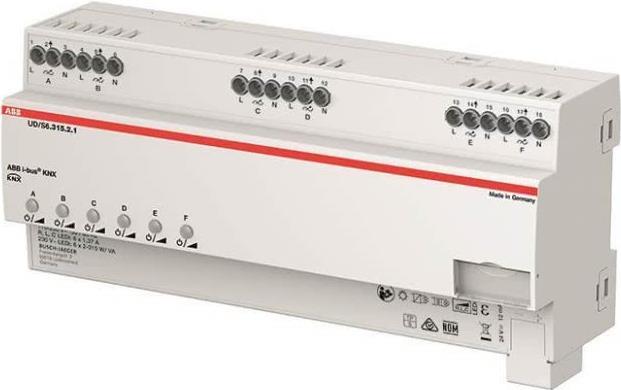

LED dimmer, 210/315 W/VA, DIN rail mount. Multi-channel universal dimming actuator optimized for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lamps with conventional or electronic transformers, 230 V halogen lamps, and dimmable halogen energy-saving lamps. Automatic load detection (can be deactivated). Separate neutral connection per channel. Parallel connection of outputs to increase output power is possible. Outputs can be connected in parallel as desired. Minimum load: 2 W. Manual operation on the device is possible even without bus voltage or in unprogrammed mode. Programming of the device is possible even without a 230 V supply voltage. Comprehensive test and diagnostic functions via the i-bus tool. Quick parameterization in ETS using copyable channel templates. With integrated bus coupler. KNX bus system: yes; KNX-RF (radio) bus system: no; Radio bus system: no; LON bus system: no; Powernet bus system: no; Installation materials: switchgear/building control unit KNX; ABB LED dimmer 6x315 W/VA UD/S6.315.2.1 KNX DIN rail universal dimming actuators.
€663,59
