Description

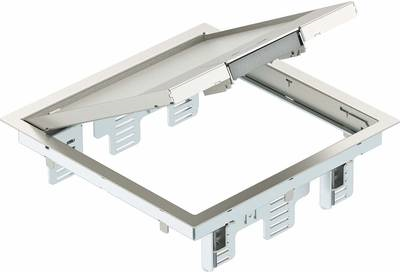

The OBO Bettermann GES9M-2 10U is a square stainless-steel underfloor service outlet designed for indoor trunking, hollow-floor and raised-floor installations. It accommodates up to twelve Modul 45 devices on three UT4 universal supports behind a hinged cover with handle clamp and a rotatable foam-sealed cable outlet. Constructed in stainless-steel A2 with IK10 impact resistance and an IP20 rating, it features a floor-covering recess for up to 5 mm thickness. The unit installs horizontally and is suited for durable office, commercial and professional electrical environments.
Key Features
- Stainless steel A2 construction
- IK10 impact resistance
- Accommodates up to 12 Modul 45 devices
- Hinged cover with rotatable cable outlet
- Floor-covering recess for 5 mm thickness
Specifications
Brand: OBO Bettermann
Model Number: 7405371
Product Type: Underfloor service outlet
Housing Material: Stainless steel
Cover Material: Stainless steel
Material Grade: A2
Surface Colour: Stainless steel
Impact Resistance: IK10
IP Rating: IP20
Cover Shape: Square
Cover Type: Hinged cover with handle clamp
Cable Outlet Type: Rotatable cable outlet
Cable Outlet Seal: Foam seal
Number Of Universal Supports: 3
Compatible Universal Support Type: UT4
Maximum Modul 45 Devices: 12
Nominal Size For Installation Units: 9
Device Cups: 3
Installation System Type: MT4 / GB3
Floor Covering Recess: true
Floor Covering Thickness Mm: 5
Minimum Installation Depth Mm: 78
External Width Mm: 265
External Length Mm: 265
Installation Opening Width Mm: 244
Installation Opening Length Mm: 244
Load Capacity: 3 kN
Mounting Orientation: Horizontal
Power Outlets Included: false
Data Outlets Included: false
Installation Devices Included: false
Professional Installation Recommended: true
Quantity Supplied: 1 service outlet
€624,46
