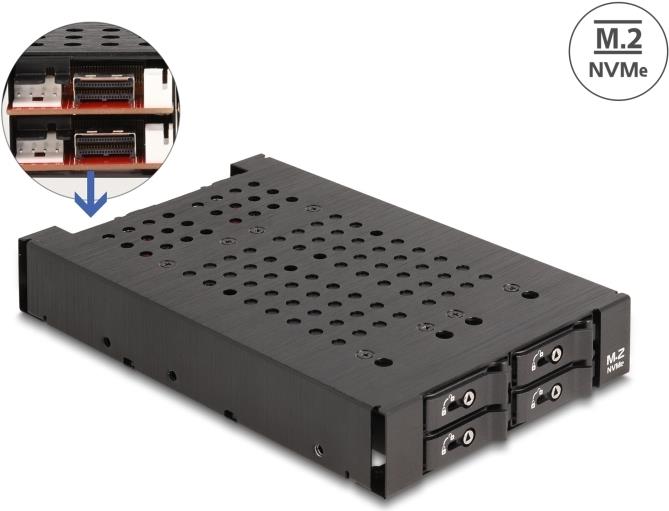

This sturdy, interchangeable metal frame from Delock can be installed in a 3.5" drive bay of a PC and offers four M.2 slots in the 2280, 2260, 2242, or 2230 formats. Quick SSD swapping Thanks to the special mechanism, SSDs can be swapped quickly and easily. For example, you can remove data backups and store them in a safe place. Lockable and secure. To ensure that only authorized persons can remove the hard drive, the interchangeable frame is equipped with a key lock. The sturdy metal holder has springs at the top and bottom that absorb vibrations and thus support use in mobile devices. Note: It is important to ensure that the insert is fully inserted, otherwise a connection to the SSD will not be possible. Technical data - Connections: Interchangeable frame: internal: 4 x M.2 Key M slot external: 4 x Slim SAS SFF-8654 4i connector 4 x 4-pin floppy connector 4 x 2-pin fan connector M.2 insert: 1 x M.2 Key M connector 1 x M.2 Key M slot - Compatible with PCI Express V4.0 - Interface: PCIe / NVMe - Supports M.2 modules in the formats 2280, 2260, 2242 and 2230 with Key M or Key B+M on PCIe basis - Maximum component height on the module: 1.5 mm, use of double-sided modules possible - 4 x LED indicator - Bootable, from UEFI version 2.3.1 - Metal M.2 insert - Supports NVM Express (NVMe) - Supports SMART - Key lock - Dimensions (WxDxH): approx. 159 x 100 x 25 mm System requirements - Linux Kernel 6.2 or higher - Windows 10/10-64/11 - Windows Server 2022 - PC with one free 3.5" slot - One free Slim SAS SFF-8654 connector for each M.2 slot - Power supply with one free SATA power connector Package contents - Interchangeable 3.5" frame with 4 x M.2 insert - 2 x SATA 15-pin to 2 x 4-pin Floppy connector cables, length approx. 12 cm - 2 x Keys.
€381,46
