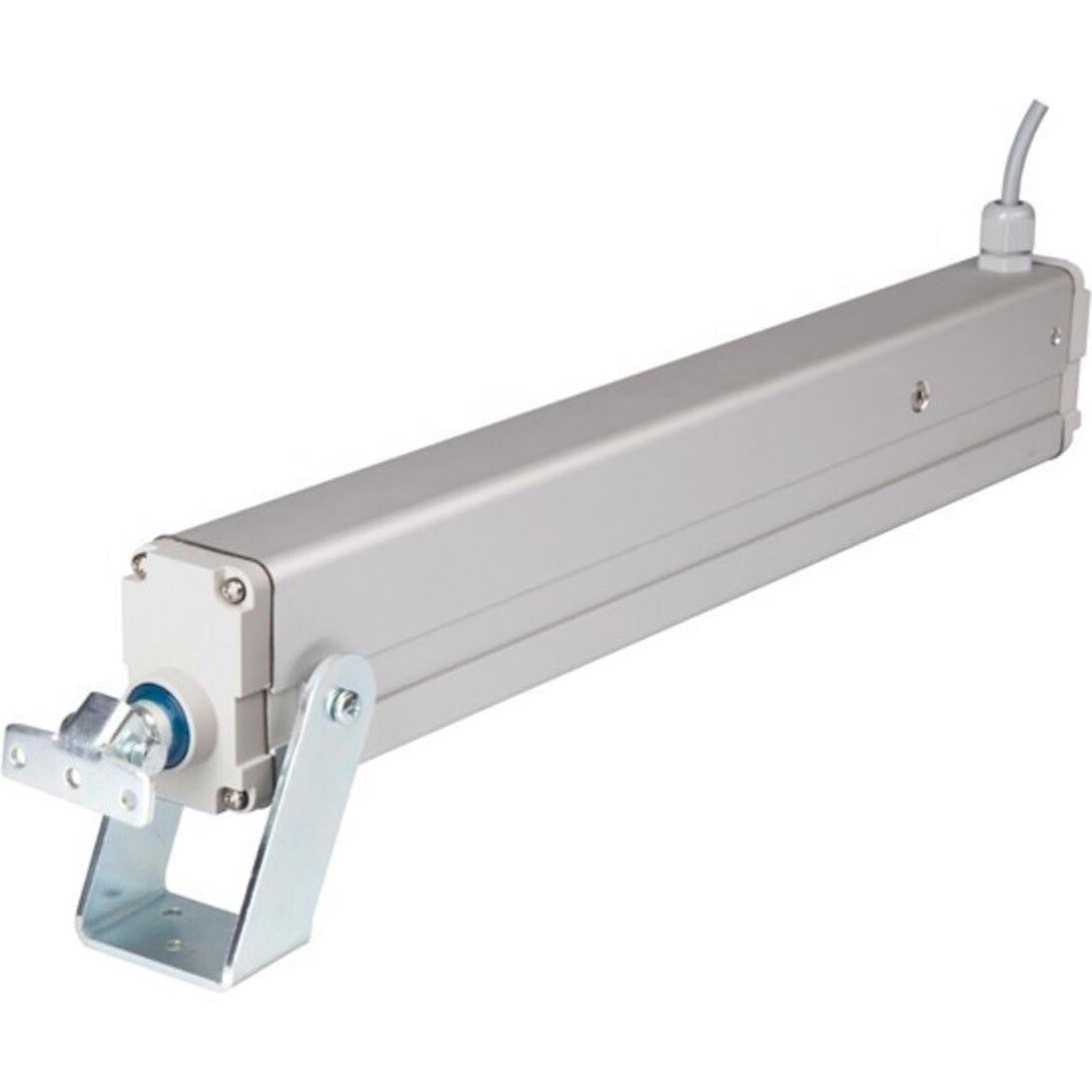

The maintenance-free Jaguar 230 screw drive makes it easy to motorize roof windows and skylights. The anodized aluminum housing is very robust yet unobtrusive. The maximum lifting height is 550 mm, which can be reduced mechanically. The closed position is detected by an overload cut-off system, ensuring the drive always closes the opening reliably. The push and pull force is 600 N. The drive is IP55-rated and has a speed of 13 mm/s. Fixing materials are included with the drive. The supply voltage is 230 V (50 Hz). Dimensions (including retracted screw): 680 x 71 x 44 mm.
€421,96
