Description

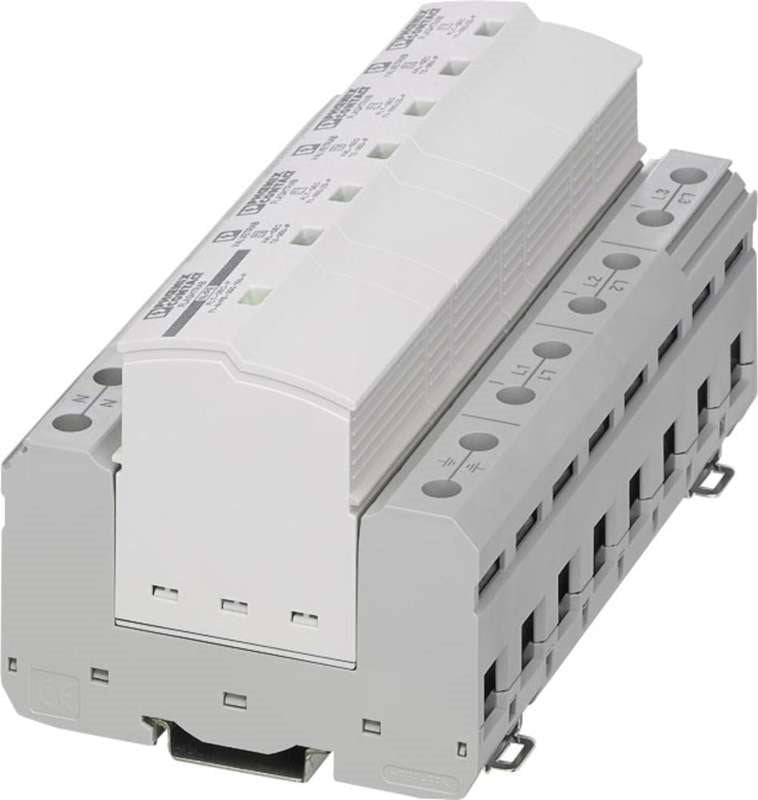

The Phoenix Contact FLT-SEC-T1T2 series industrial surge protector offers three-phase protection with a maximum surge current rating of 100 kA and an impulse discharge current of 25 kA. It mounts on a DIN rail with an IP20 enclosure rated for operation between –40 °C and 80 °C. The module measures 142.4 mm wide and 74.5 mm deep and conforms to IEC 61643-11:2011/EN 61643-11:2012 standards. The FLT-SEC range designation is FLT-SEC.
Key Features
- 100 kA maximum surge current
- 3-phase design
- 25 kA impulse discharge current
- DIN Rail mounting
- IP20 rating
- Operating temperature –40 °C to 80 °C
Specifications
Brand: Phoenix Contact
Model Number: 2905470
Product Type: Industrial Surge Protector
Phase: 3
Maximum Surge Current Ka: 100
Impulse Discharge Current Ka: 25
Range: FLT-SEC
Series: FLT-SEC-T1T2
IP Rating: IP20
Mount Type: DIN Rail
Width (mm): 142.4
Depth (mm): 74.5
Standards Approvals: IEC 61643-11:2011/EN 61643-11:2012
Max Operating Temperature C: 80
Min Operating Temperature C: -40
€843,51
