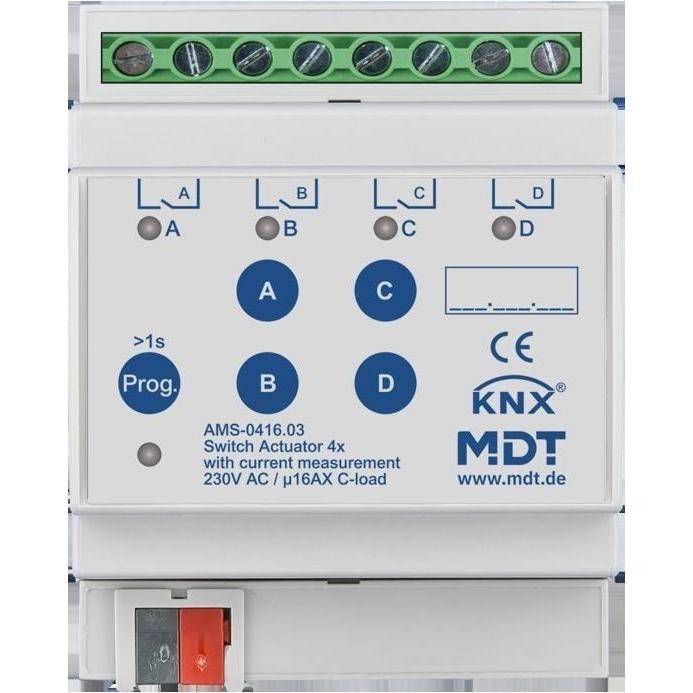

MDT technologies 4-gang switch actuator, 4TE AMS-0416.03 Manufacturer: MDT technologies Description: 4-gang switch actuator, 4TE REG, 16 A, 230 V AC Type: AMS-0416.03 KNX bus system: yes KNX wireless bus system: no Funkbus bus system: no LON bus system: no Powernet bus system: no Other bus systems: none Bidirectional radio: no Mounting type: REG Width in modular spacings: 4 Local/manual control: yes With LED indicator: yes Maximum switching power: 2500 W Suitable for C loads: yes Maximum number of switching outputs: 4 Maximum switching current: 16 A Rated current: 16 A Rated operating voltage: 230 V Different phases can be connected: yes Power consumption: 0.3 W With bus coupling: yes Removable bus module: no Modular expansion possible: no Degree of protection (IP): IP20 Further details: KNX switching actuator 4-channel switching, 4TE REG, 16 A, 230 V AC, C-load, current measurement, 140 F. Standard version with bistable relay. Maximum current 16 A, maximum capacitive load 140 F. Extensive range of functions. Integrated True RMS current measurement. Current measurement range 10 mA.. 16 A. Integrated counter function for energy consumption (Wh/kWh). Fast response.
€277,09
