Description

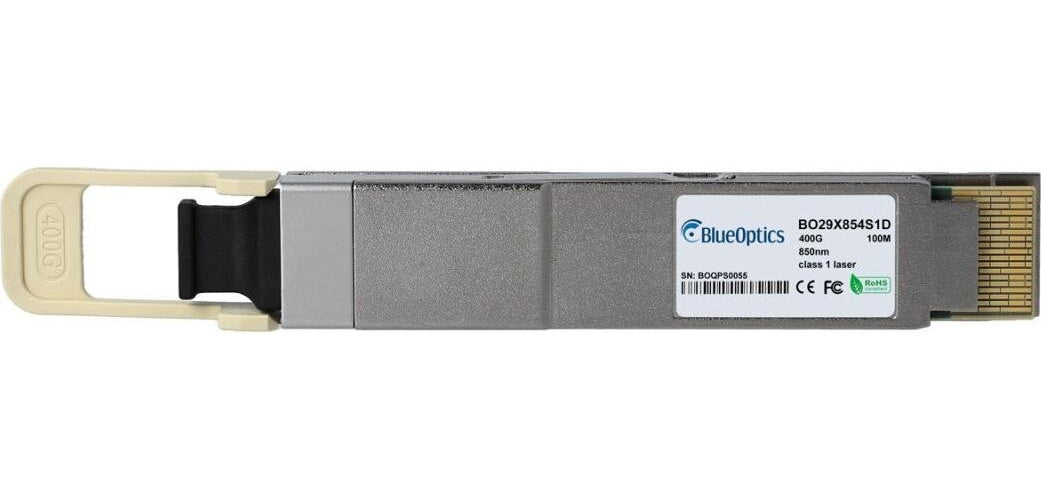

The QSFP-DD transceiver 980-9I530-00W000 is designed for NVIDIA-compatible networking systems. It conforms to the 400GBASE-SR8 specification using an MPO-16/MTP-16 connector over multimode fiber at 850 nm, achieving distances up to 100 m. Integrated Digital Diagnostics Monitoring provides real-time module status, and the operating range spans 0 °C to +70 °C. It is supplied under model number 980-9I530-00W000-BO.
Key Features
- QSFP-DD form factor
- MPO-16/MTP-16 connector
- 400GBASE-SR8 multimode fiber
- 850 nm wavelength
- 100 m reach
- Digital Diagnostics Monitoring
Specifications
Model Number: 980-9I530-00W000
Product Type: transceiver
Compatibility: NVIDIA
Connector Type: MPO-16/MTP-16
Module Standard: 400GBASE-SR8
Fibre Type: multimode
Wavelength Nm: 850
Maximum Distance M: 100
Operating Temperature Range: 0 °C to +70 °C
Ddm Supported: true
€394,92
