Description

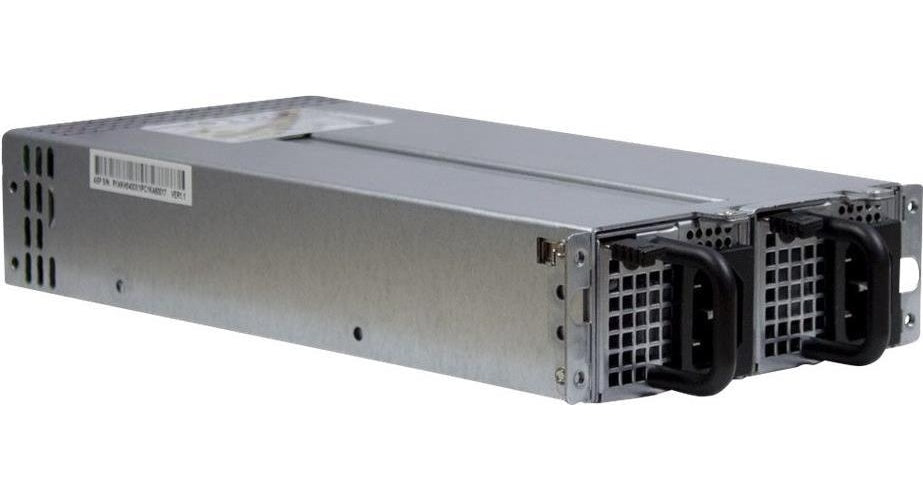

The Inter-Tech ASPOWER R1A-KH0400 is a 1U server power supply delivering up to 400 W of output with an 80 PLUS Silver efficiency rating. It features universal AC input from 100 to 240 VAC at 50–60 Hz and active cooling via two 4 cm fans. Output rails include +3.3 V at 18 A, +5 V at 18 A, +12 V at 33 A, −12 V at 0.5 A and +5 Vsb at 3 A, all protected against overload, overvoltage, overheating and short circuits. Connectors include a 20+4-pin ATX, a 6+2-pin PCI-Express, two SATA power, two Molex and one floppy drive power connector.
Key Features
- 400 W total output
- 80 PLUS Silver certified
- Active cooling with two 4 cm fans
- 20+4-pin ATX and 6+2-pin PCI-Express connectors
- +12 V rail with 33 A maximum current
Specifications
Brand: Inter-Tech
Model Number: R1A-KH0400
Product Type: Power supply
Power (W): 400
Power Source: AC
Certification: 80 PLUS Silver
Cooling Type: Active
Fan Count: 2
Fan Diameter Mm: 40
Input Voltage Range: 100-240 VAC
Input Frequency: 50-60 Hz
Max Current 3 3V A: 18
Max Current 5V A: 18
Max Current 12V A: 33
Max Current Minus 12V A: 0.5
Max Current 5Vsb A: 3
Motherboard Power Connector: 20+4 pin ATX
Pcie Power Connectors: 6+2 pin
Sata Power Connectors: 2
Molex Power Connectors: 2
Floppy Drive Power Connector: 1
Width (mm): 122
Depth (mm): 245
Height (mm): 41
Weight (g): 1900
Mtbf Hours: 100000
€392,29
