Description

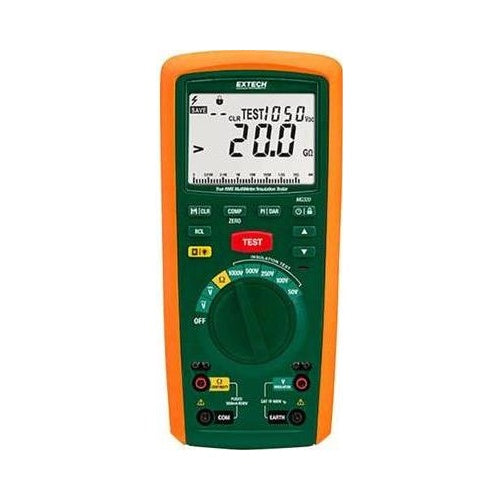

The Extech MG320 is a robust insulation tester and digital multimeter rated CAT IV 600 V. It measures insulation resistance up to 20 GΩ across five test voltages (50, 100, 250, 500 and 1000 V), AC/DC TRMS voltage to 600 V and low resistance/continuity down to 0.01 Ω. The unit stores and recalls up to 99 readings and performs polarization index and dielectric absorption ratio tests with automatic discharge and hands-free lock testing. A front-panel live voltage alert LED, pass/fail comparator and factory calibration round out its feature set.
Key Features
- CAT IV 600 V rating
- Insulation resistance up to 20 GΩ
- Test voltages: 50, 100, 250, 500, 1000 V
- AC/DC TRMS voltage to 600 V
- Continuity measurement from 0.01 Ω to 20 kΩ
- Stores up to 99 readings
Specifications
Brand: EXTECH
Model Number: MG320
Product Type: Insulation tester
Weight (g): 700
Width (mm): 103
Height (mm): 225
Depth (mm): 59
Protection Features: CAT IV 600 V
Measurement Frequency Range Hz: 50-400 Hz
Display Type: LCD
€688,36
