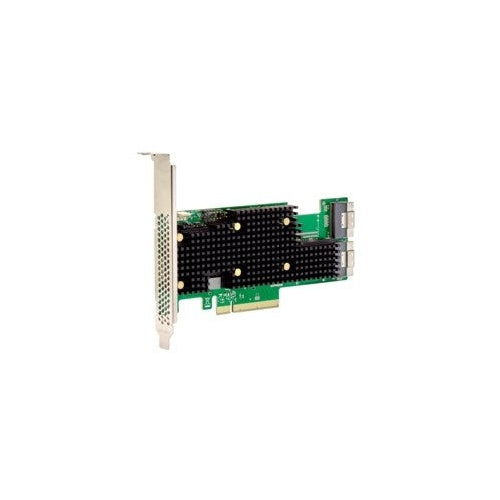

Broadcom HBA 9620-16i - Speichercontroller (RAID) - 16 Sender/Kanal - SATA 6Gb/s / SAS 24Gb/s / PCIe 4,0 (NVMe) - RAID 0, 1, 10 - PCIe 4,0 x8 (05-50111-02) afbeelding 1
  • Broadcom HBA 9620-16i - Speichercontroller (RAID) - 16 Sender/Kanal - SATA 6Gb/s / SAS 24Gb/s / PCIe 4,0 (NVMe) - RAID 0, 1, 10 - PCIe 4,0 x8 (05-50111-02) afbeelding 1
  • Broadcom HBA 9620-16i - Speichercontroller (RAID) - 16 Sender/Kanal - SATA 6Gb/s / SAS 24Gb/s / PCIe 4,0 (NVMe) - RAID 0, 1, 10 - PCIe 4,0 x8 (05-50111-02) afbeelding 1
No Title Available
€1.496,08
Description The Broadcom eHBA 9620-16i is a high-performance host bus adapter delivering 24 Gb/s SAS, SATA and NVMe connectivity via a PCIe 4.0 x8 interface. It features two internal SFF-8654 ports and supports hardware RAID levels 0, 1 and 10 with SMART monitoring. The card consumes 17 W typically and offers an MTBF of 5,000,000 hours. Encased in a black, green and silver housing measuring 155.6 mm by 68.8 mm, it operates between 0 °C and 55 °C and is compatible with Linux, Windows and VMware ESXi environments. Key Features - 24 Gb/s SAS/SATA/NVMe support - PCIe 4.0 x8 host interface - 2 internal SFF-8654 ports - RAID 0/1/10 support - 17 W typical power consumption - 5,000,000 h MTBF Specifications Brand: BROADCOM Model Number: eHBA 9620-16i Power (W): 17 Color: Black, Green, Silver Width (mm): 155.6 Depth (mm): 68.8 Mtbf H: 5000000 Max Data Rate Gbit S: 22.5 Raid Levels: 0,1,10 Smart Support: true Internal: true Nvme: true Host Interface: PCIe 4.0 x8 Internal Sff 8654 Ports: 2 Sustainability Certifications: RoHS, DEEE Mounting Supports Included: true Quantity Per Pack: 1
