Description

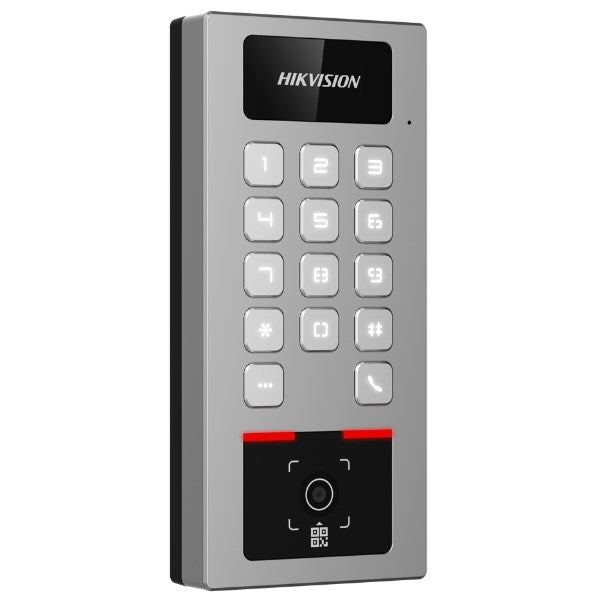

The Hikvision DS-K1T502DBWX-QR access control terminal combines controller and reader in a single IP65-rated unit designed for indoor and outdoor installations. It supports multi-factor authentication via 13.56 MHz MF cards including DESFire, dynamic QR codes and PIN entry, with mixed-mode combinations. The device stores up to 100,000 cards and logs 300,000 access events, configurable through iVMS-4200. Built-in relay output, door sensor and exit button interfaces enable standalone operation, while TCP/IP, WiFi, RS-485 and Wiegand ports facilitate system integration.
Key Features
- IP65 rating for indoor/outdoor use
- Multimodal authentication: MF DESFire, QR code, PIN
- Supports up to 100,000 cards and 300,000 event records
- Integrated controller with relay, door sensor and exit button
- Connectivity via TCP/IP, WiFi, RS-485 and Wiegand
- Managed through iVMS-4200 software
Specifications
Brand: Hikvision
Model Number: DS-K1T502DBWX-QR
Product Type: Access control terminal
IP Rating: IP65
Authentication Methods: MF card 13.56 MHz, MF DESFire, QR code, PIN
Card Capacity: 100000
Record Capacity: 300000
Integrated Controller: true
Relay Output: true
Door Sensor Input: true
Exit Button Input: true
Connectivity Interfaces: TCP/IP, WiFi, RS-485, Wiegand
Software: iVMS-4200
€363,29
