Description

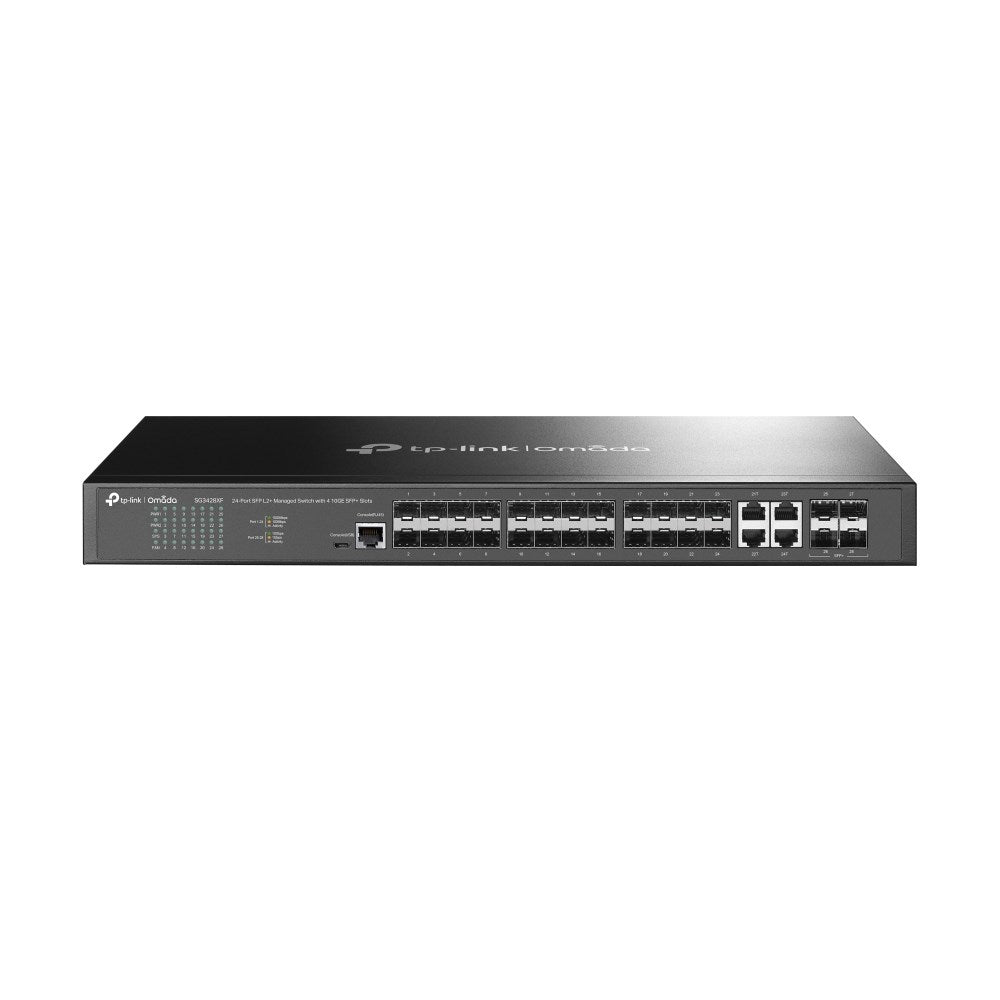

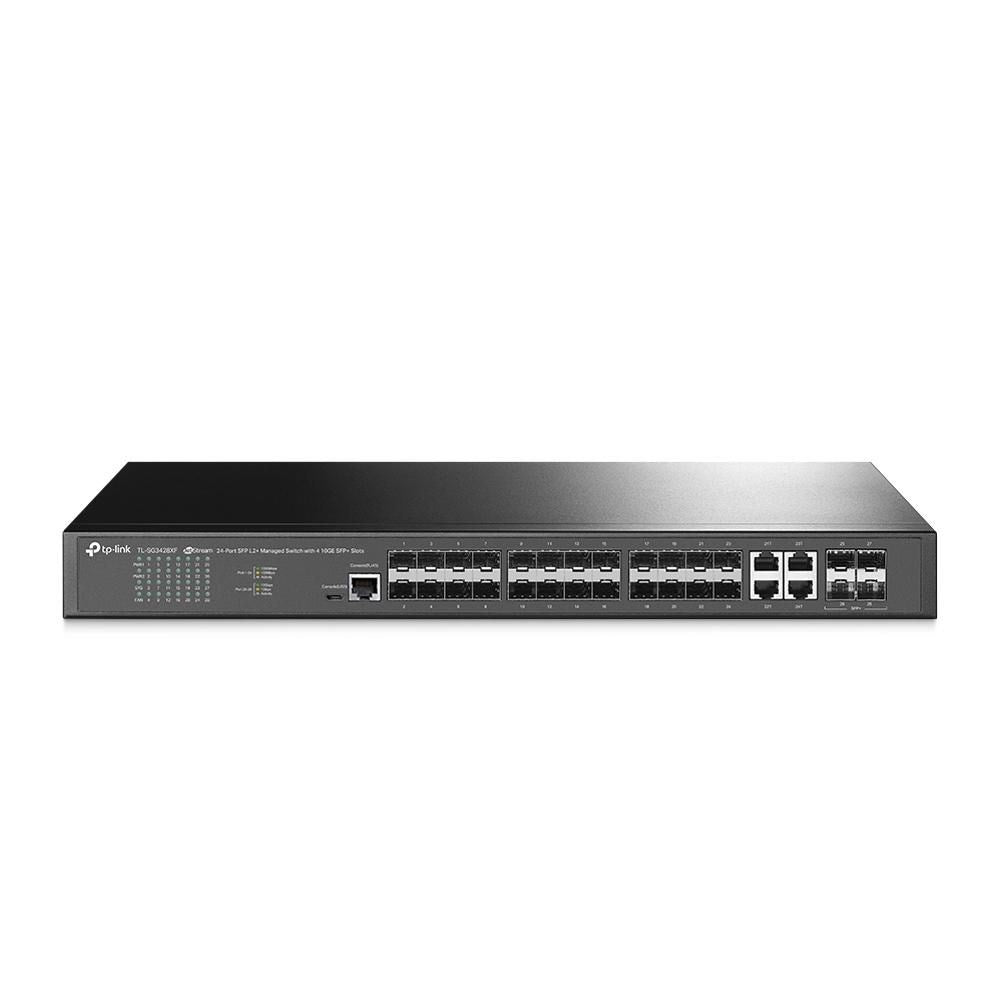

The TP-Link Omada TL-SG3428XF is a 24-Port SFP L2+ Managed Switch that includes 4 10GE SFP+ slots, offering extensive connectivity options. This switch features a total switching capacity of 128 Gbit/s and a forwarding rate of 95.23 Mpps, making it suitable for high-performance networking needs. It supports redundant power supply (RPS) capabilities and comes with two power supply units. The device operates within an AC input voltage range of 100-240 V and has a maximum power consumption of 35.7 W. The solid black chassis is rack-mountable in a 1U form factor, with dimensions of 534 mm in width, 335 mm in length, and 98 mm in height. Additional functionalities include DHCP relay, IGMP snooping, MAC address filtering, and advanced security features like password protection and ACL support. The switch is designed for versatile networking environments with support for VLANs, link aggregation, and multicast capabilities.
Key Features
- 24 SFP ports
- 4 10GE SFP+ slots
- 128 Gbit/s switching capacity
- 95.23 Mpps forwarding rate
- Redundant power supply support
- Maximum power consumption of 35.7 W
- 1U rack-mountable
- Supports MAC address filtering
- DHCP relay, snooping, and client features
Specifications
Brand: TP-LINK
Model Number: TL-SG3428XF
Product Type: Switch
Weight (g): 4640
Width (mm): 534
Height (mm): 98
Depth (mm): 335
Power Source: AC
Batteries Included: false
Charger Included: false
LED Indicators: Yes
Number Of Fans: 1
Rack Mounting: Yes
IP Rating: N/A
Flow Control Support: Yes
Switch Type: Managed
Networking Standards: IEEE 802.1ab, IEEE 802.1w, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3ae, IEEE 802.3i, IEEE 802.1s, IEEE 802.3z, IEEE 802.3at
Total Power Over Ethernet Budget: N/A
Surge Protection: Yes
Cloud Managed: Yes
€682,83
