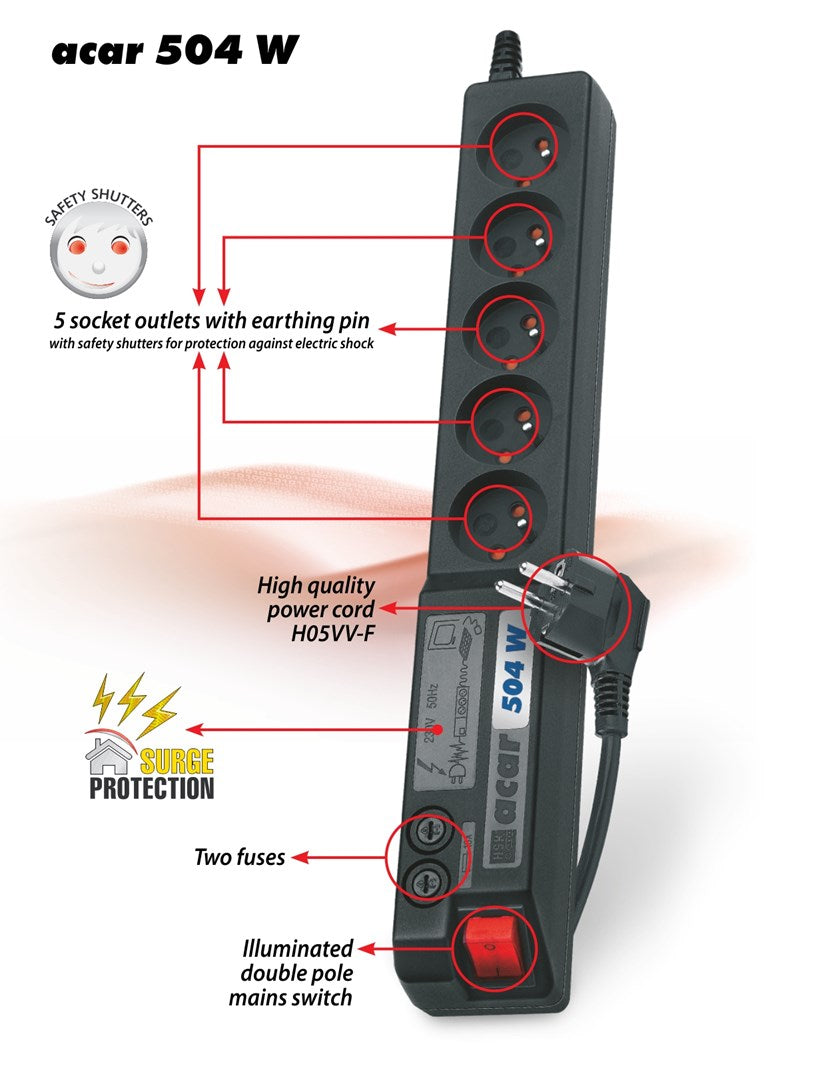

The Acar distribution panel is equipped with 5 sockets / 230 V, a tray and surge protection. The cable is 3 meters long. Parameters: Rated voltage: 230 V Frequency: 50 Hz Rated current: IN 10 A Protection of 2 fuses: 10 A/250 V Leakage current: less than 0.5 mA Delay time: less than 25 ns Maximum continuous operating voltage of the overvoltage system: UC 250V 50 Hz Protection level UP of the overvoltage system: 1.3 kV (L / N) Rated current iN: 2.5 kA (L / N) - 8/20 s Maximum impulse leakage current: MAX 6.5kA (L / N) - 8/20 s Electromagnetic interference attenuation: 55 dB Surge protection system: 2P + Z Socket field material: self-extinguishing plastic Number of mains sockets: 5 Color: black Dimensions: 385 x 659 x 55/43 mm Weight: 0.54 kg without tray.
€57,26
