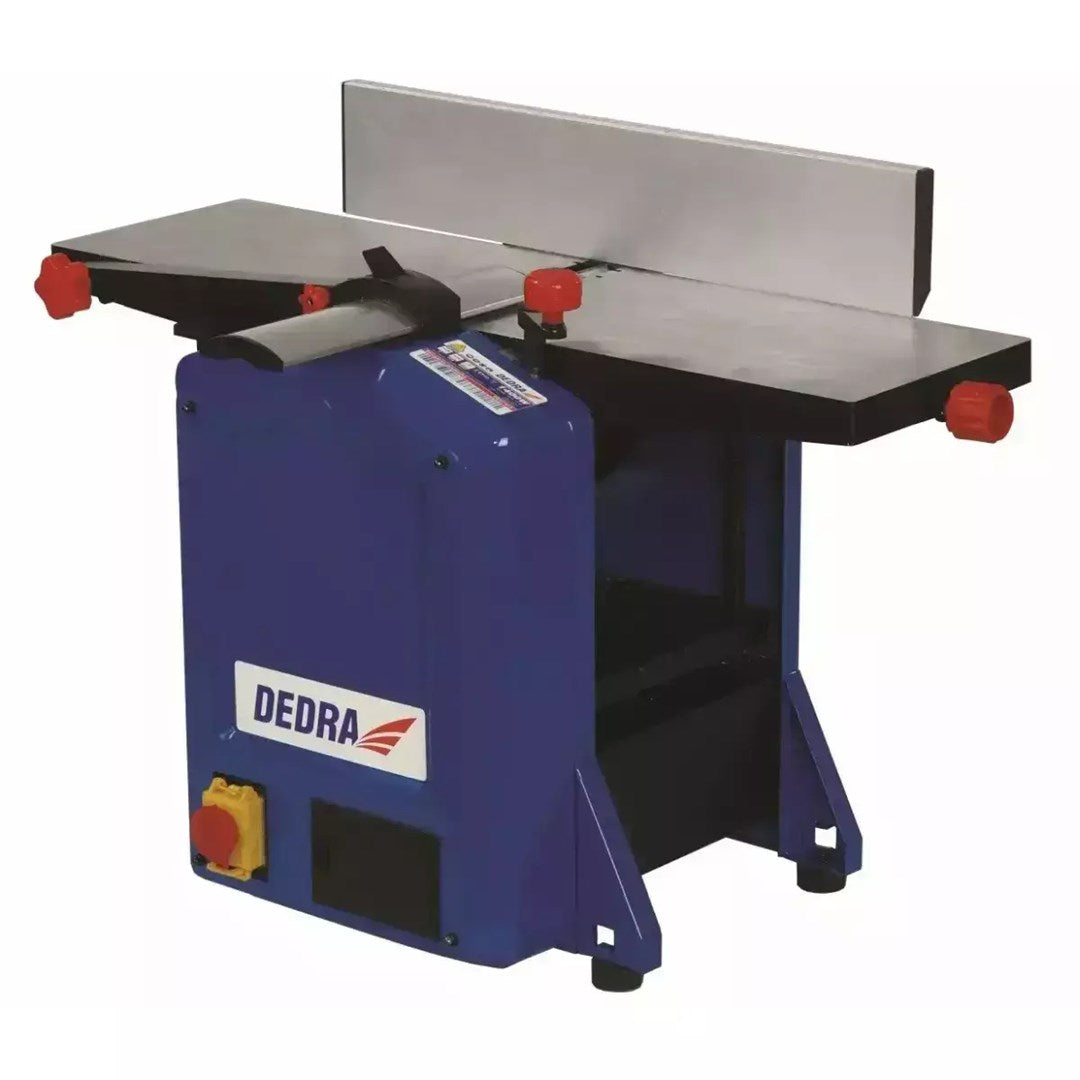

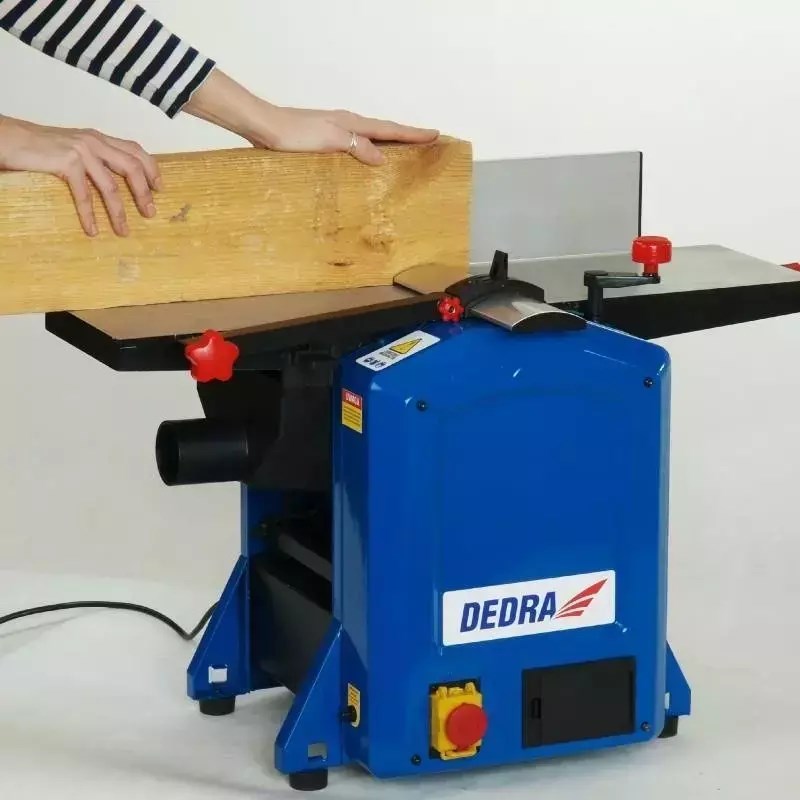

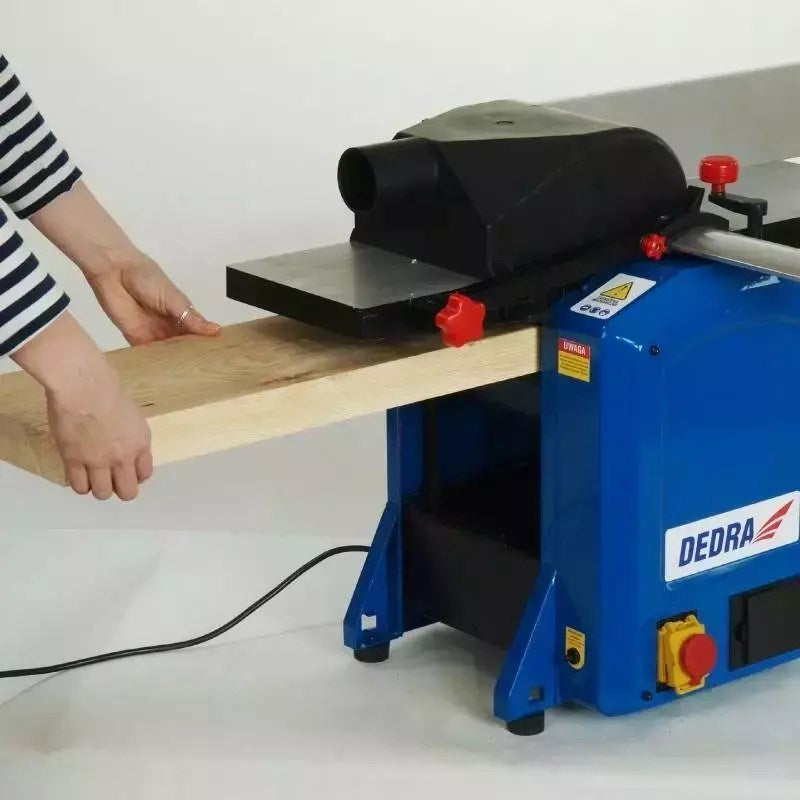

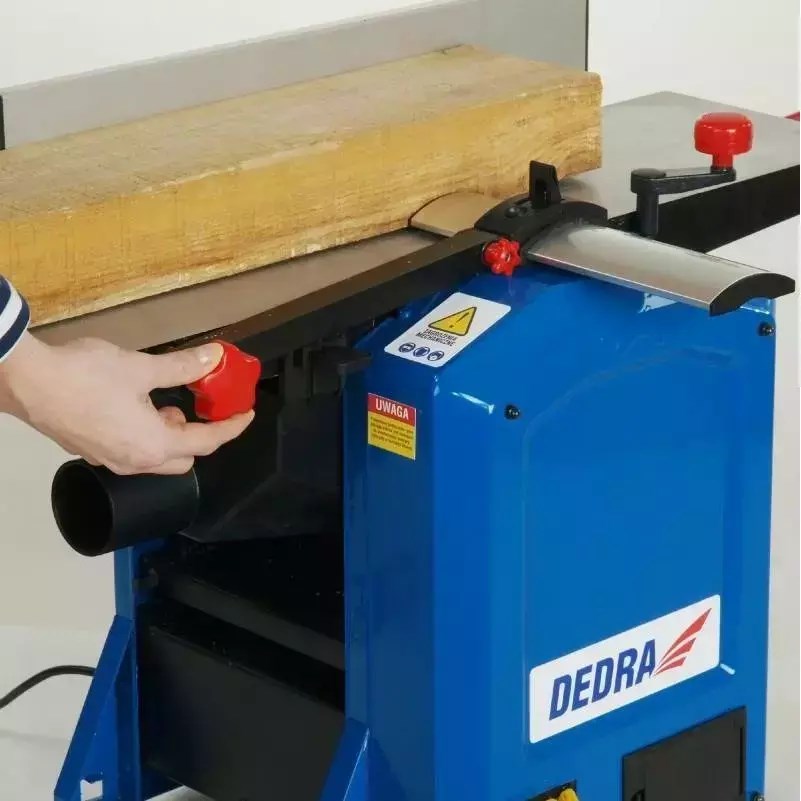

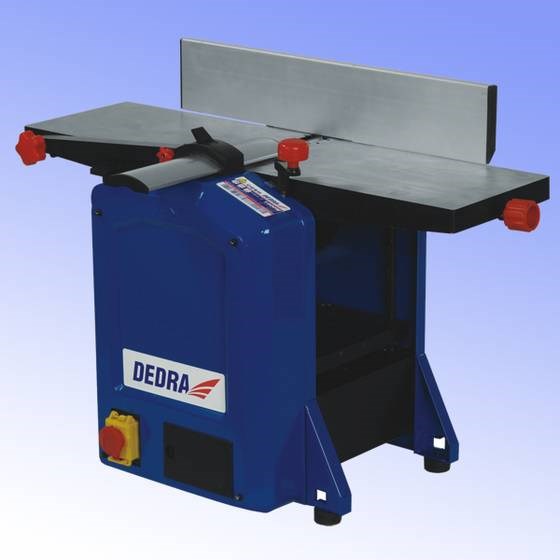

The DED7813 planer and thicknesser is a device that can be used for both surface planing and surface finishing of flat workpieces. The device is equipped with a chip extraction system, which ensures smooth operation without the possibility of the blade becoming blocked by chips during operation. The thickness of the collected material can be adjusted from 0.5-2 mm. Additionally, the device has an overload switch that automatically turns the device off in the event of an overload. Features of the DED7813 planer and thicknesser: . Adjustable trim thickness; Chip extraction; Overload switch; Sturdy guide; Adjustable guide; Technical specifications of the DED7813 planer and thicknesser: . Voltage: 230V; Frequency: 50 Hz; Motor power: 1400W; Rotational speed: 8500RPM; Weight: 32 kg; Planer specifications: . Maximum planning width: 204 mm; Maximum trim thickness: 2mm; Guide dimensions: 540x210 mm; Guide tilt range: 90-130; Table size: 745x210 mm; Thicknesser technical data: . Maximum planning width: 204 mm; Maximum material height: 210 mm; Maximum trim thickness: 2mm; Completeness: . Longitudinal guide (set); Allen key 4mm (1pc); Crank (1pc); M5x15mm screw (1pc); Washer 5mm (1pc); Spring washer 5mm (1pc); Plastic blade cover with chip extraction connector (1pc); Multi-V belt (1pc); .
€941,47
