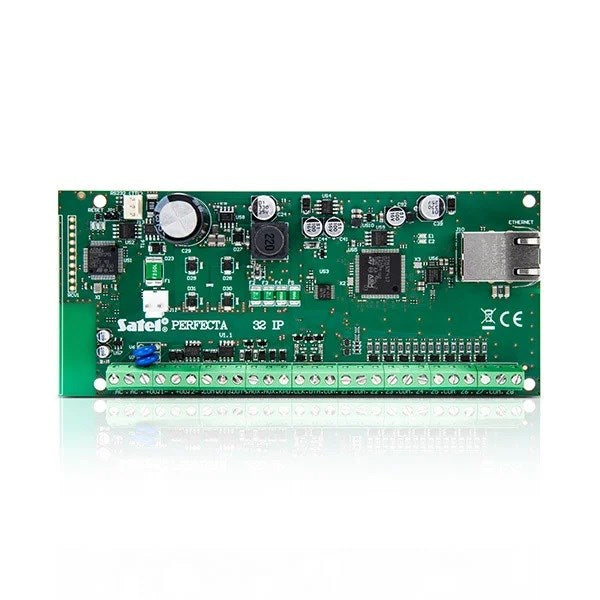

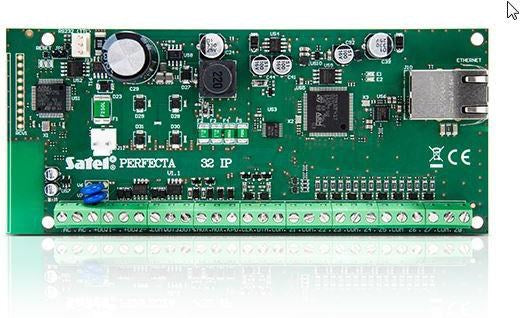

SATEL PERFECTA-IP 32 Alarm Control Panel Mainboard PERFECTA-IP alarm control panels are designed to secure small and medium-sized facilities, such as apartments, single-family homes, terraced house segments, offices, small businesses, etc. They provide protection compliant with Grade 2 EN 50131 requirements. The control panels are characterized by simple configuration and easy and intuitive operation using keypads. The alarm system can also be remotely controlled using the PERFECTA CONTROL mobile application and keyfobs operating in the 433 MHz frequency band (after connecting the INT-RX-S module). The PERFECTA-IP 32 model uses an Ethernet communicator. This enables use of the mobile application, remote system configuration using the PERFECTA Soft program, and event reporting (e.g., to a security agency monitoring station). The control panel electronics board is equipped with 8 hardwired inputs and 4 hardwired outputs. Their number can be increased by connecting expansion modules: INT-E input expanders and INT-O or INT-ORS output expanders. This allows you to expand the system by adding more sensors, sirens, or actuators (to control garage doors, roller shutters, garden sprinklers). The control panel allows you to divide the system into two zones, with a choice of three arming modes (day, night, full). Each input can be assigned to one or both monitored areas. The system can be configured in two ways: from a computer with the PERFECTA Soft program installed (locally - connection via RS-232 (TTL) port, remotely - via data transmission over Ethernet) and using a keypad. from 8 to 32 programmable wired zones a) selectable configuration: NO, NC, EOL, 2EOL/NO, 2EOL/NC. b) ability to support roller shutter and vibration detectors; from 4 to 12 programmable wired outputs; 2 power outputs on the motherboard; built-in Ethernet module (monitoring to the station, mobile app, PUSH notifications); system division into 2 zones: a) 3 monitoring modes in each zone. b) ability to assign an input to two zones. c) control by the user or timers, among others.; software update capability; system control via: keypads, mobile app and remote controls; 15 user passwords and 1 service password; name editing for easier system control and supervision; 8 timers with the option of setting exceptions; 3,584 event memory; automatic diagnostics of basic system components; built-in switching power supply; programming of control panel settings; dimensions: 160x68mm (W/H); compliant with EN 50131 Grade 2; The product meets the requirements of the Act of 24-01-2018 on Waste Electrical and Electronic Equipment. Technical specifications: Supply voltage: 18V AC 15%, 50/60Hz. Recommended transformer: 40 VA. Standby current consumption: 100 mA. Maximum current consumption: 200 mA. Standby current consumption from battery: 110 mA. Maximum current consumption from battery: 110 mA. Power supply output voltage: 12V DC 15%. Output voltage range: 10.5V 14V DC. Power supply output current: 2 A. Battery charging current: 500 mA. Battery failure reporting voltage: 11V 10%. Battery cut-off voltage: 10.5V 10%. High-current programmable outputs: 1000 mA / 12V DC. Low-current programmable outputs: 25 mA / 12V DC. KPD output: 500 mA / 12V DC. AUX output: 500 mA / 12V DC. Programmable wired inputs: 8. Maximum number of programmable inputs: 32. Programmable wired outputs: 4. Maximum number of programmable outputs: 12. Power outputs: 2. Communication buses: 1. Keypads: up to 4. Zones: 2. Users: 15. Timers: 8. Event memory: 3584. Security grade according to EN 50131: Grade 2. Environmental class according to EN 50130-5: II. Operating temperature: -10°C 55°C. Maximum humidity: 93.3%. Weight: 108g. Dimensions (W/H): 160x68mm. If you need additional components such as alarm cables, additional keypads, GSM modules or other alarm accessories, you will find them in our other auctions.
€175,94
