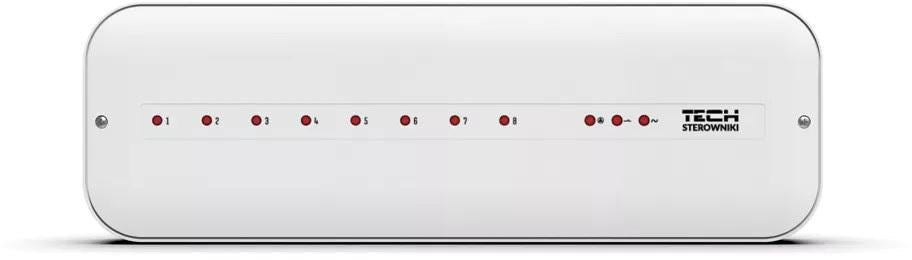

L-5s Underfloor Heating Strip/Controller MANUFACTURER: TECH. Temperature control in 8 rooms. Compatible with two-state wired controllers powered by 230V or battery. Voltage-free contact for controlling the heating device. Live contact for pump operation. Wide selection of compatible controllers. Modern design. Product Description: The L-5s wired underfloor heating strip from Tech. The L-5s strip is an advanced controller for regulating thermostatic controllers located on the distributor. In the case of the L-5s strip, all other additional devices must be installed and connected to the strip with a cable. The cable must be run, among other things, to wired room thermostats. We recommend purchasing the Stt-230/2 thermoelectric actuators. The L-5 strip is very affordable, and its functions allow you to easily adapt the entire underfloor heating system to your needs. Controller functions: . Ability to control max. 50 thermostatic actuators using 8 room controllers. 16 230V voltage outputs (2 outputs per zone) or load of each zone up to 0.3A (70W). one 230V output per pump. voltage-free contact (for controlling an additional heating device). 1. Removable connectors. 2. Clear marking. A. Unlike the L-5 strip, the L-5s strip can power regulators. B. 8 zones / rooms. C. DIN rail mounting. D. Voltage-free contact. E. Pump operation.
€142,55
