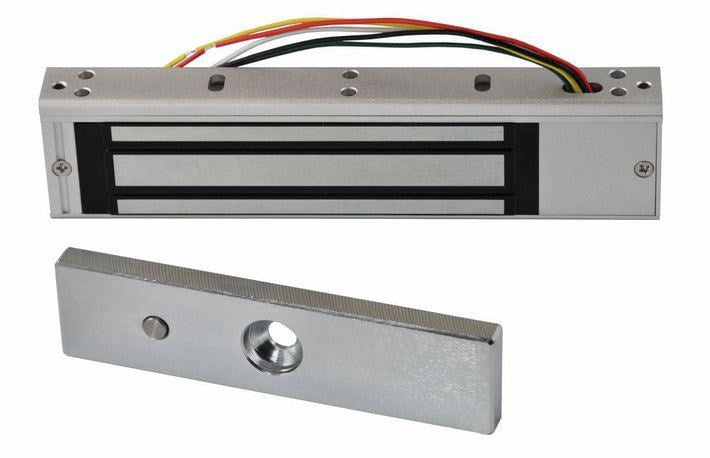

SCOT EL-350SL2 ELECTROMAGNETIC LOCK (up to 180 kg) SCOT electromagnetic locks are an alternative to the electric strikes commonly used in access control systems. The lock consists of an actuator containing an electromagnet, mounted on the door frame, and a metal plate placed on the door leaf. The energized electromagnet coil attracts the plate, thus securing the entrance. Depending on the lock model, the maximum door pressure at which the electromagnet attracts the metal plate is 180, 280, 350, or 540 kg. Signaling. The electromagnetic lock is equipped with a NC relay (v.2 NO/NC), which can be used in an access control system to indicate the opening/closing of the controlled door. This allows information to be transmitted, for example, to an alarm system, informing about the door's status. LED Indicator. A two-color LED is located on the lock housing to indicate the entry status. If the door is closed, this is signaled by a green diode; if the door is open or ajar, the diode will light up red. If the electromagnetic armature coil is not powered (e.g. during a control pulse), the diode is off. EL-350SL2 armature dimensions. SPECIFICATION: . Max. door pressure: 180 kg; Intended use: Internal; Supply voltage: 12V DC / 24V DC; Current consumption: 300mA (12V DC) / 150mA (24V DC); Indication: Yes (NO/NC contact), Hall effect sensor; Information LED: Yes; Armature dimensions (W x H x D): 185 x 46 x 22.4 mm; Board dimensions (W x H x D): 130 x 33 x 10 mm; .
€91,28
