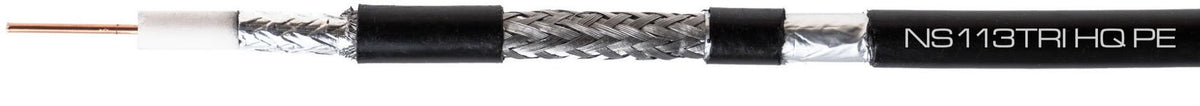

RG6 113 Trishield Coaxial Cable 1.13 CU PE, 300m. High-quality, triple-shielded black RG6 coaxial cable with an inner conductor made of 1.13 mm diameter copper wire. The conductor is sheathed in nitrogen-foamed polyethylene (N), which provides particularly effective dielectric insulation. The cable's shielding is made according to the Trishield standard, which uses triple core protection, consisting of a layer of AL/PET aluminum foil, an aluminum braid with a coverage factor of up to 98%, and another layer of AL/PET aluminum foil. The outer sheath is made of black polyethylene (PE), with a diameter of 6.8 mm, which protects against mechanical damage and allows for quick and easy cable routing. All this gives this cable high shielding effectiveness, confirmed by class A/A+. This cable is designed for indoor and outdoor antenna installations and can be used with terrestrial and satellite television signal reception systems. We recommend using specially designed PCT 9 or Master series connectors (available in our offer). By clicking BUY NOW 1 pc., you purchase 300 meters of RG6 cable, i.e., one roll packaged in a pullbox for easy unwinding. A similar cable is also available on a 100m roll. Recommended for use in multiswitch installations and for connecting to internal active devices. Due to its very thick 30um foil, it is particularly suitable for bus connections. It allows for maximum shielding in the 950MHz to 2150MHz range. The cable's shielding is designed according to the Trishield standard, which uses triple core protection, consisting of a layer of AL/PET aluminum foil, a densely braided braid, and another layer of AL/PET aluminum foil. The outer sheath is made of black polyethylene (PE), with a diameter of 6.8 mm, which protects against mechanical damage and allows for quick and easy cable routing. The cable has a rich braid, providing excellent shielding in the return channel. The braid is protected against moisture by a polyester foil. The cable's 1.13 mm copper core ensures low attenuation. Standardized quality, consistent with EU directives and meeting the requirements of the Regulation of the Minister of Transport, Construction and Maritime Economy of November 6, 2012, which came into effect on February 22, 2013, and complies with the EN 50117 standard and the Class A/A+ standard. Technical data: Inner conductor: copper Ø 1.13 mm Cu 0.02 mm; Dielectric: nitrogen physically foamed polyethylene (FPE), Ø 4.80 0.02 mm; Trishield screen: AL foil + aluminum braid with 98% optical coverage, 144x0.12 mm + AL foil; Screen 1: aluminum/PET foil (AL/PET), 0.04 mm; Screen 2: aluminum/PET foil (AL/PET), 0.04 mm; Outer sheath: Ø 6.80 mm polyethylene (PE); Sheath colour: Black; Impedance: 75 ; Compliance with standards: EN 50117 Class A/A+, 2011/65/EU;2015/863 (RoHS 3); Length: 300 m; KABKC0900.
€182,58
