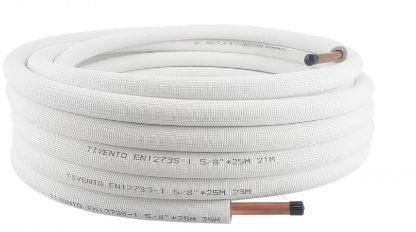

Copper pipe 5/8" x 0.8 mm, length 25 m in sheath for refrigeration and air conditioning. Insulated TIVENTO copper pipe designed for the distribution of gas or liquids contained in refrigerants: R134a, R600, R407, R410, R32 and ester oils. To insulate its copper pipes, TIVENTO uses exclusively cross-linked TIVENTO FLEX polyethylene foam. Refrigeration pipes insulated in this way can withstand a constant temperature of 120°C. Standard pipe. Copper pipe manufactured in accordance with the UNI-EN 12735-1 standard. Material: CuDHP copper alloy (Cu: 99.90% min P 0.015 0.040%), phosphorus deoxidized copper, hardened in discs, in accordance with the UNI EN 1412 standard. Insulation Characteristics: TIVENTO FLEX is a closed-cell polyethylene foam. In a physical process, polyethylene molecules are cross-linked, meaning the number of bonds between individual molecules is significantly higher than in a material with physically uncross-linked molecules. Due to this special cell structure, the insulation is very durable and retains its shape longer. When exposed to loads, it absorbs energy and quickly returns to its original shape. The entire structure is protected by a very durable LD-PE foil, resistant to UV radiation. Outer layer: Grooved, durable LDPE foil. Inner layer: Cross-linked closed-cell polyethylene foam, free from environmentally harmful chlorofluorocarbons (CFCs) and hydrochlorofluorocarbons (HCFCs) in accordance with with European standard CEE/EU 2037/2000. Water vapour diffusion resistance . 5482. Operating temperature . - 80C to + 120C. Fire resistance class . Construction product Euroclass (fire reaction class): BL-s1,d0. Classification performed in accordance with EN 13501-1-1+A1. Tested in accordance with EN ISO 11925-2 and EN 13823. Technical data: . pipe diameter: 5/8" - 15.88mm; Wall thickness: 0.8 mm; Cover thickness: 10 mm; Cooling media: HFC; Application: . Refrigeration; Air-conditioning; Heat pumps; .
€174,14
