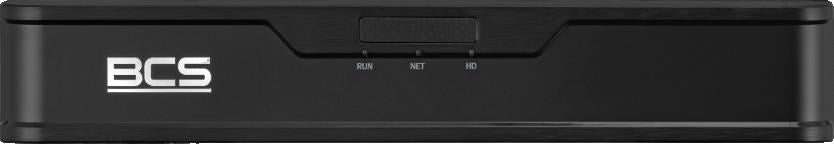

16-Channel IP Recorder BCS-P-NVR1601-4KE-III Product code: BCS-P-NVR1601-4KEIII. 16-channel network recorder from BCS Point. Technical data. Device name BCS-P-NVR1601-4KE-III; BCS POINT product line; IP system; Pentaplex function Live view / recording / playback / archiving / remote access; Channels 16; Drives 1; Drive capacity 6 TB; Max recording resolution 8 Mpx; Input bandwidth 64Mbps; Output bandwidth 48Mbps; Display Performance 1 8M(30fps) / 1 5M(30fps) / 2 4M(30fps) / 4 3M(25fps) / 4 2M(30fps) / 8 720P(30fps) / 16 D1(25fps); Recording Resolution 8M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF; Video Compression H.265+ / H265 / H.264+ / H.264; HDMI Video Output 4K/VGA; HDMI Display Resolution 3840 2160 / 1920 1080 / 1600 1200 / 1280 1024 / 1280 720 / 1024 768; Display Resolution VGA 1920 1080 / 1600 1200 / 1280 1024 / 1280 720 / 1024 768; Output Split 1/4/8/9/16 (3/4/5/7/9/10/12/16 corridor mode); Playback 1/4/9/16; Archiving Possibility of saving material to external media like USB FLASH, USB HDD; Users 128; Interfaces 2 USB2.0; Audio Output 1; Audio Compression G.711A / G.711U; Support Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android); Network RJ-45 10/100Mbps; ONVIF Compliance, support for third-party cameras; Protocols P2P, UPnP, NTP, DHCP, PPPoE; Power supply 12V DC; Power consumption (without disks) max 5W; Operating conditions -10°C +55°C max 90% RH; 1U housing; Dimensions (WDH) 260 240 47mm; Weight (without disks) 1 kg; .
€124,82
