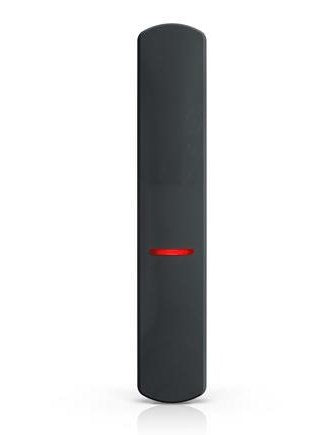

XD-2L-DG WIRED UNIVERSAL DETECTOR SATEL. The XD-2L-DG wired detector can operate in one of 4 modes, making it an extremely versatile device. Depending on your needs, the device can be configured as: a magnetic detector, a shock detector, a shock detector with a reed switch, or a water flood detector (an external FPX-1 probe is required - available separately). XD-2L-DG works with any alarm control panel. Interoperability. Alarm control panel. Detection. Door or window opening, Vibrations, Water. Environmental class EN 50130-5. II. Security grade (Grade). 2& xa0. Sensitivity adjustment. Shock detector. Alarm indication. LED indicator, Signal to alarm control panel. Permissible relay contact load (resistive). 40 mA / 24 V DC. Power supply. 12 V DC / 15 mA (max). Selected features. Operating modes :; Magnetic sensor - Opening a door or window - Maximum distance between the sensor and the magnet: 15 mm (surface magnet), 19 mm (mortise magnet) - input enabling the connection of an NC type wired detector - 1 Alarm output; Shock sensor - Detection of shocks and vibrations accompanying attempts to forcibly force a door or window - Range : 3 m - input enabling the connection of an NC type wired detector - 1 Alarm output; Shock and magnetic sensor - Detection of shocks and vibrations accompanying attempts to forcibly force a door or window - Opening a door or window - input enabling the connection of an NC type wired detector - 1 / 2 Alarm outputs; Water flood sensor - FPX-1 probe required, available separately - detects the presence of water in rooms at risk of flooding - 1 Alarm output; Color. Dark graphite. Operating temperature. -10 °C.. 55 °C. Weight. 0.04 kg (sensor). Dimensions. 25 x 136 x 29 mm (sensor); 15 x 52 x 6 / 8 / 10 / 12 / 14 mm (surface magnet); Ø 10 x 28 mm (mortise magnet); Manufacturer / Brand. SATEL. Warranty. 2 years. Manufacturer's PL catalog card. PL manual. Quick installer guide.
€70,95
