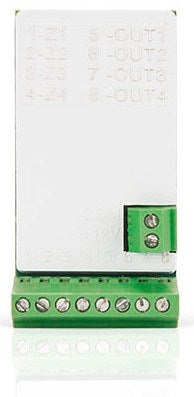

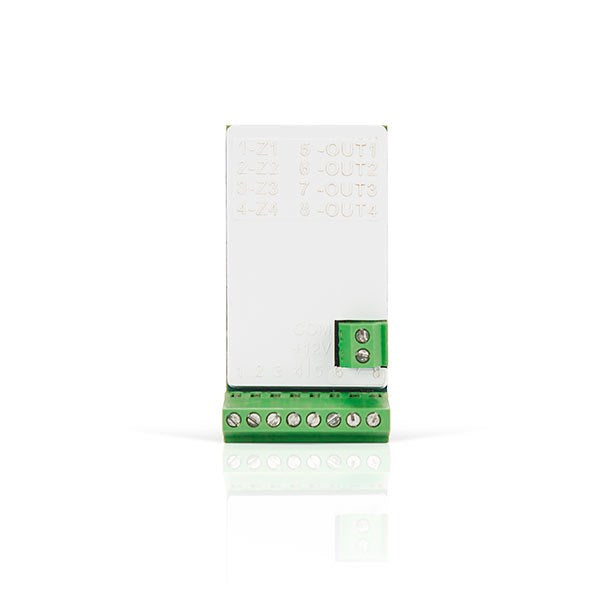

ACX-210 Input and Output Expander Satel Miniature Wireless Wired Input and Output Expander The ACX-210 module enables the use of wired devices (detectors, sirens, etc.) in the ABAX 2 / ABAX wireless system. It is equipped with 4 programmable inputs supporting NO and NC wired detectors and EOL, 2 EOL configurations, as well as 4 programmable OC wired outputs. This miniature expander requires only a small installation space. The device is powered by a voltage of 4-24 V DC. Configuring the ACX-210 settings and updating the firmware is performed remotely. In the ABAX 2 system, two-way radio communication is AES encrypted. The expander can be powered from the alarm control panel, from an expander with a power supply, or from a power supply with a current limit of 3 A. ACX-210 FEATURES: Connecting wired devices to the ABAX 2 or ABAX system. compatibility with ABAX 2 system controllers (ACU-220 and ACU-280) and the ARU-200 repeater; ABAX system controllers (ACU-120, ACU-270, ACU-250 and ACU-100 (version 4.04 or higher)), the INTEGRA 128-WRL control panel and the ARU-100 repeater - the required device software version should be checked in its description on the website; radio communication range in open space. in ABAX 2: up to 2000 m (with ACU-220) / up to 1400 m (with ACU-280); in ABAX: up to 500 m; 4 programmable inputs - support for wired detectors in NO, NC, EOL, 2EOL/NO and 2EOL/NC configurations. 4 programmable OC type outputs. Remote configuration and software updates. Compact dimensions. power supply: 4-24 V DC . TECHNICAL SPECIFICATION ACX-210 Operating temperature range: -10°C..+55°C. Supply voltage: 4..24 V DC. Standby current consumption: 30 mA . Maximum current consumption: 35 mA . Weight: 10 g . Maximum humidity: 93.3%. Operating frequency band: 868.0 868.6 MHz . Dimensions: 21 x 41 x 13 mm . Environmental class according to EN50130-5: II. Complied with standards: EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-3, EN 50131-5-3. Security grade according to EN50131-3: Grade 2. Radio communication range (in open area) for ACU-120: up to 500 m . Radio communication range (in open area) for ACU-270: up to 500 m . Radio communication range (in open area) for ACU-220: up to 2000 m . Radio communication range (in open area) for ACU-280: up to 1400 m . Low-current OC type outputs: 50 mA / 12 V DC. Manufacturer code: ACX-210 .
€74,02
