Description

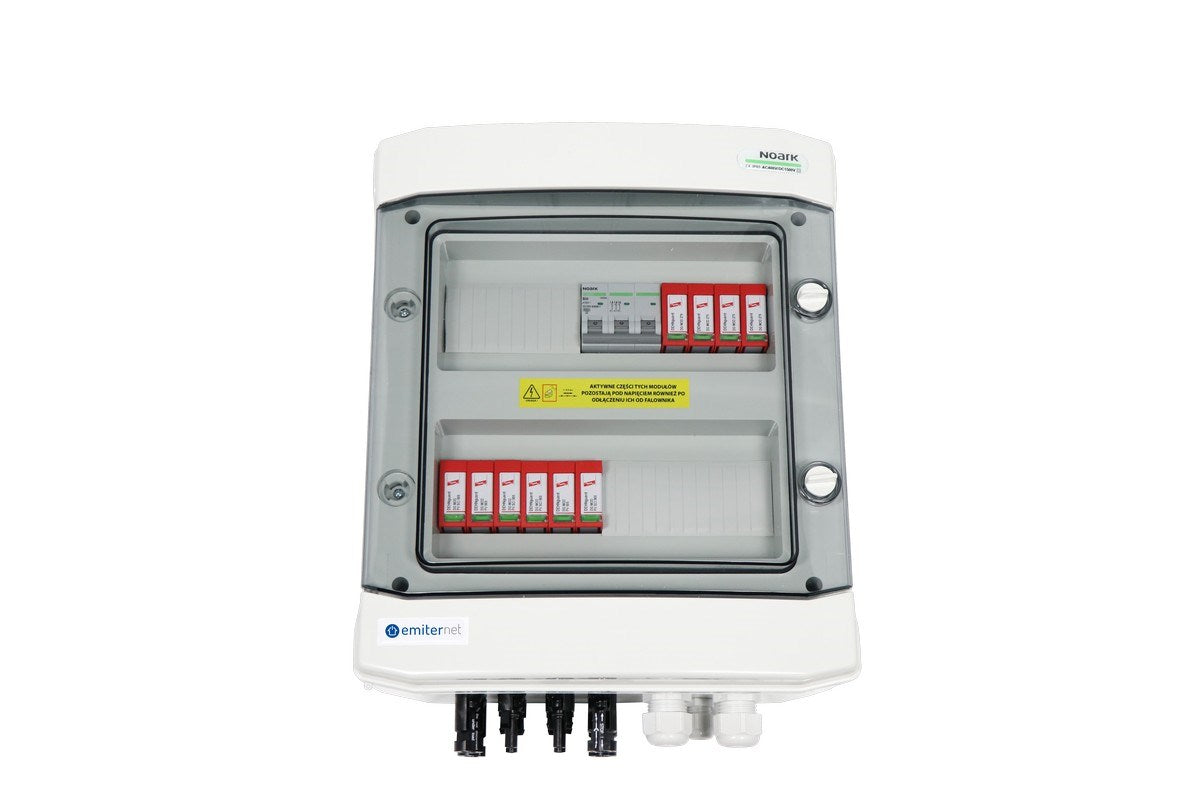

The EMITER EM-102_DCAC is a switchgear attached DCAC hermetic junction box with an IP65 rating, specifically designed for solar applications. It includes a DC surge arrester from Dehn rated for 1000V Type 2 and is configured for two photovoltaic strings and two maximum power point trackers (MPPT). This model has dimensions of 400 mm in length, 319 mm in width, and 384 mm in height, with a total weight of 2840 grams.
Key Features
- DC surge arrester 1000V Type 2 from Dehn
- Supports 2 x PV string and 2 x MPPT
- IP65 rated hermetic enclosure
- Dimensions: 400 mm length, 319 mm width, 384 mm height
- Weight: 2840 g
Specifications
Brand: EMITER
Model Number: EM-102_DCAC
Product Type: Switchgear attached DCAC hermetic junction box
Weight (g): 2840
Width (mm): 319
Height (mm): 384
Length (mm): 400
€317,17
