Description

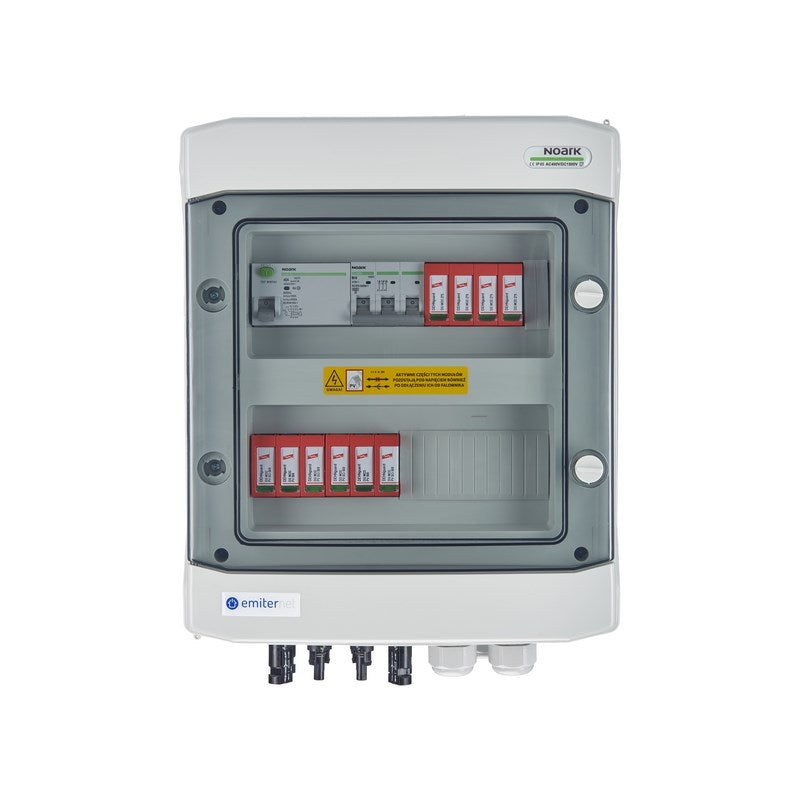

The EMITER EM-1102_DCAC is a hermetic DCAC switchgear designed to provide robust protection with a durability rating of IP65. It features a DC surge arrester Dehn 1000V type 2, accommodating up to 2 photovoltaic (PV) strings and 2 maximum power point trackers (MPPT). Additionally, it includes AC surge protection with Dehn type 2 rated at 10A for three-phase systems and a residual current device (RCD) type A rated at 40A with a sensitivity of 300mA. This product is ideal for renewable energy systems, facilitating efficient and safe energy networking.
Key Features
- Hermetic IP65 enclosure
- DC surge arrester Dehn 1000V type 2
- Supports 2 x PV strings
- 2 x MPPT capability
- AC surge protection Dehn type 2, 10A 3-F
- RCD type A 40A/300mA
Specifications
Brand: EMITER
Model Number: EM-1102_DCAC
Product Type: Switchgear
Weight (g): 2840
Width (mm): 319
Height (mm): 384
Length (mm): 400
€353,84
